Запчасти Case IH 2350 (3-08) - FRAME AND BRACKETS, JOHN DEERE TRACTORS

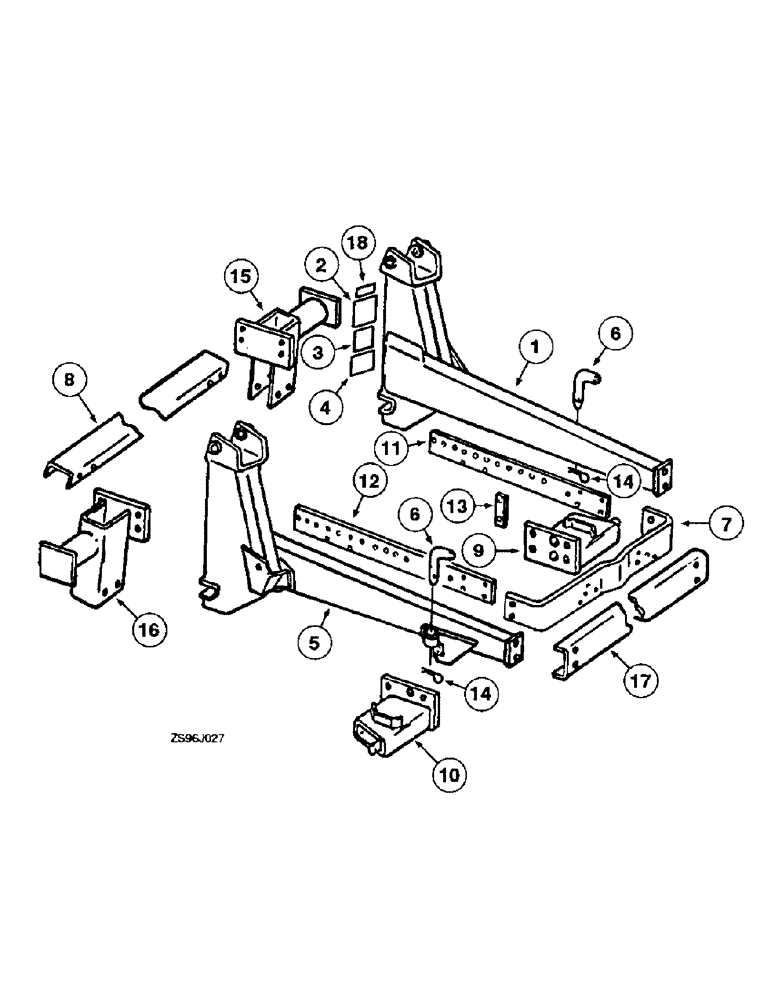

Схема запчастей Case IH 2350 - (3-08) - FRAME AND BRACKETS, JOHN DEERE TRACTORS
16
2
14
1
9
3
4
8
13
18
17
11
14
5
7
12
15
6
10
6

Артикул

Название

Примечание

Количество

1

852963C92

FRAME ASSY

FRAME ASSEMBLY - sub LH, with decals (replaces 851716C1)

1шт.

2

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

3

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170C1)

1шт.

5

851717C1

FRAME

ASSEMBLY - sub RH

1шт.

6

851720C1

PIN

- frame locking

2шт.

7

851852C1

SUPPORT

- front bracket

1шт.

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

(Replaces 21452R1) Hex, 3/4"-10 x 2", G8

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

2шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer 131046) 3/4"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

2шт.

8

851849C1

CHANNEL

- rear bracket cross, tie

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces 180173) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

8шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (replaces 178374R1)

8шт.

9

851856C1

BRACKET

ASSEMBLY- front mounting LH

1шт.

10

851857C1

BRACKET

ASSEMBLY - front mounting RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

8шт.

11

851850C1

BAR

- bracket mounting LH

1шт.

12

851851C1

BAR

- bracket mounting RH

1шт.

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - carriage, 5/8 NC x 1-1/2 inch

20шт.

420-21040

BOLT - plow, 5/8 NC x 2-1/2 inch (replaces 26760R1)

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

22шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC (replaces 124847)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

20шт.

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

- flat, 15/32 x 1 x 7/64 inch (replaces 21783R1)

4шт.

13

851832C2

BAR

- bracket spacer

6шт.

420-21040

BOLT - plow, 5/8 NC x 2-1/2 inch (replaces 26760R1)

12шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

12шт.

14

591107R1

COTTER PIN

- cotter, hair, quick attachable

2шт.

15

851854C2

BRACKET

ASSEMBLY - rear mounting LH

1шт.

16

851855C2

BRACKET

ASSEMBLY - rear mounting RH

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548)

8шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

8шт.

17

851755C1

CHANNEL

- sub-frame, tie

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (replaces 180175)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch (replaces 20601R1)

4шт.

18

851836C1

PRODUCT GRAPHIC

DECAL - important, dealer installed

1шт.

Выбрано товаров: 42
