Запчасти Case IH 2350 (3-06) - FRAME AND BRACKETS, INTERNATIONAL HARVESTER TRACTORS

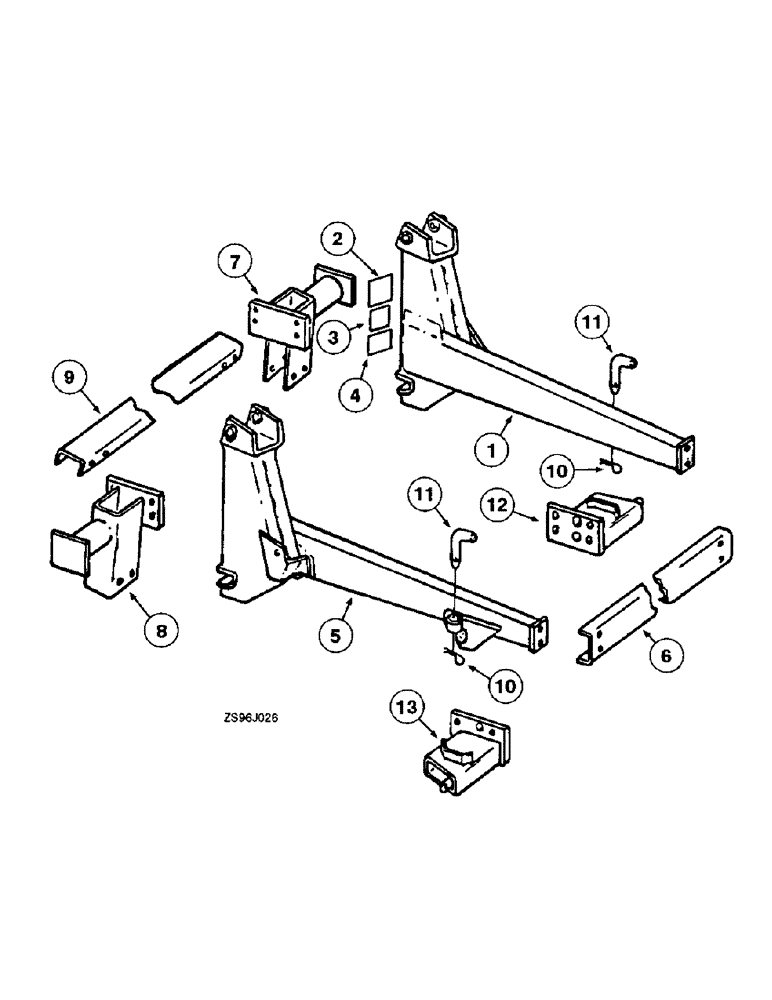

Схема запчастей Case IH 2350 - (3-06) - FRAME AND BRACKETS, INTERNATIONAL HARVESTER TRACTORS
13
1
11
9
6
10
11
3
7
2
5
4
12
10
8

Артикул

Название

Примечание

Количество

1

852963C92

FRAME ASSY

FRAME ASSEMBLY - sub LH, with decals (replaces 851716C1)

1шт.

2

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

3

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual (replaces 1254170C1)

1шт.

5

851717C1

FRAME

ASSEMBLY - sub RH

1шт.

6

851755C1

CHANNEL

- sub-frame, tie

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (replaces 180175)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch (replaces 20601R1)

4шт.

7

851854C2

BRACKET

ASSEMBLY- rear mounting LH

1шт.

8

851855C2

BRACKET

ASSEMBLY- rear mounting RH

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548)

8шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

8шт.

9

851849C1

CHANNEL

- rear bracket cross tie

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces 180173) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

8шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (replaces 178374R1)

8шт.

10

591107R1

COTTER PIN

- cotter, hair, quick attachable

2шт.

11

851720C1

PIN

- frame locking

2шт.

12

851856C1

BRACKET

ASSEMBLY - front mounting LH

1шт.

13

851857C1

BRACKET

ASSEMBLY - front mounting RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

8шт.

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

(replaces 30541R1) Hex, M16 x 50, 8.8

10шт.

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm (Replaces 934185R1)

10шт.

Выбрано товаров: 27
