(5-26) - HEAVY DUTY BOOM, 2250, 2350 AND 2450 LOADERS

Запчасти Case IH 2350 (5-26) - HEAVY DUTY BOOM, 2250, 2350 AND 2450 LOADERS

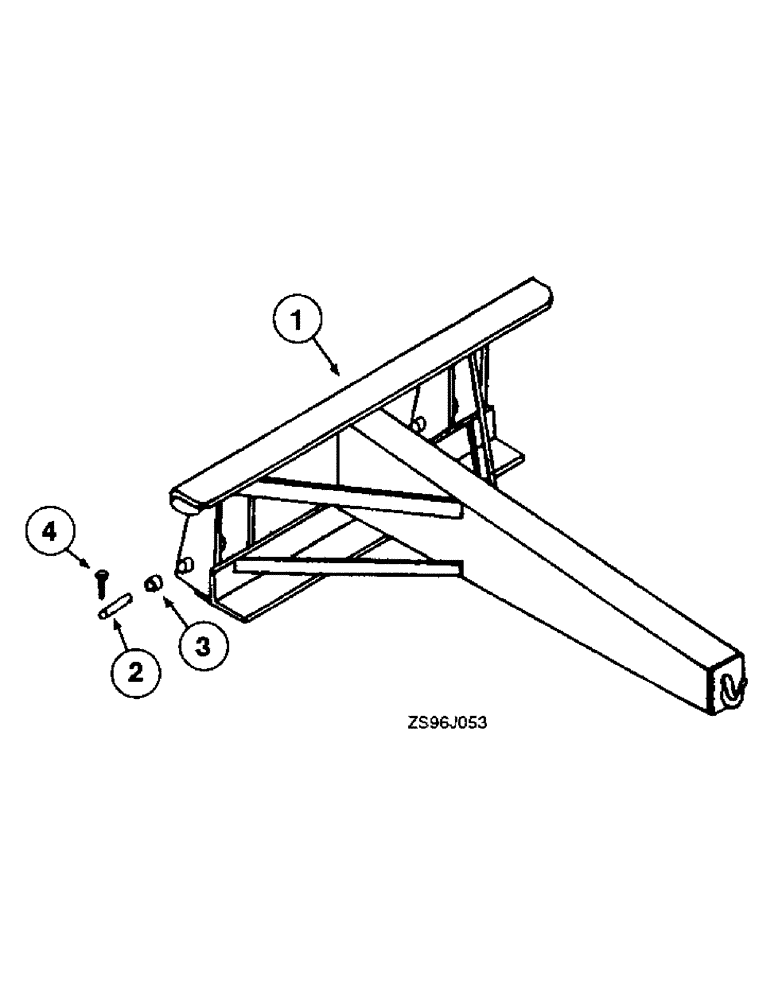

Схема запчастей Case IH 2350 - (5-26) - HEAVY DUTY BOOM, 2250, 2350 AND 2450 LOADERS
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BOOM ASSEMBLY - serviced only as a machine attachment

1шт.

2

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

3

378555R1

SPACER

BUSHING - spacer, for bucket cylinder pin

4шт.

4

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.
