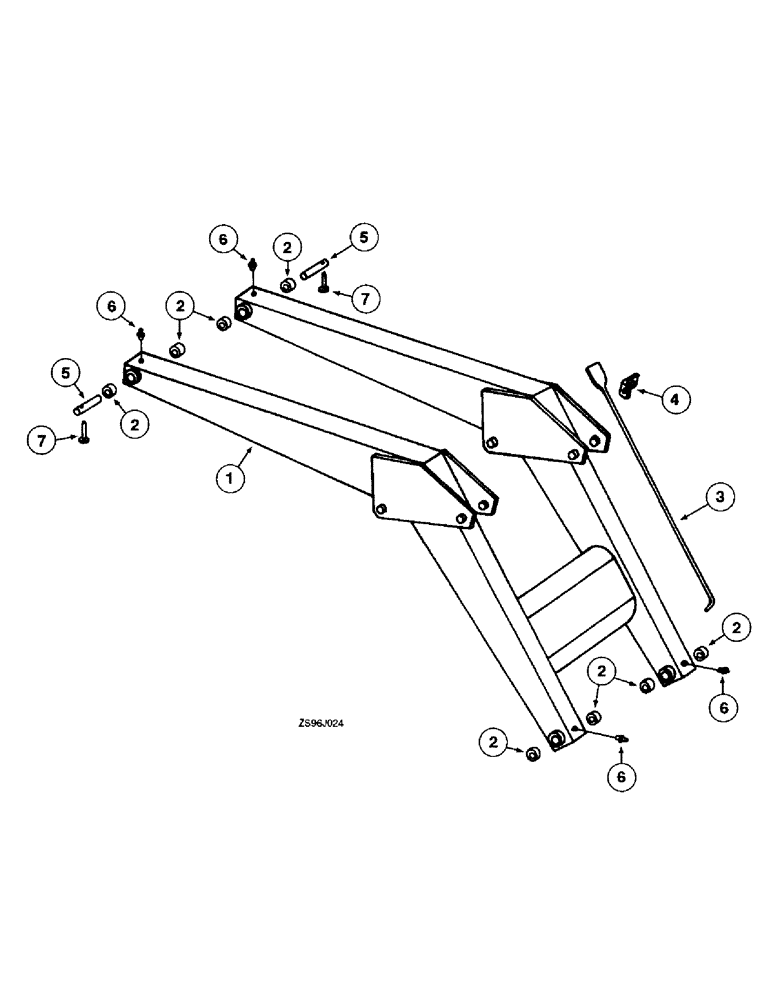

Запчасти Case IH 2350 (3-02) - BOOM AND BUCKET INDICATOR

1

851701C92

BOOM

ASSEMBLY - loader (replaces 378478R1), Includes: Ref. 2

1шт.

2

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

- boom and bucket pivot

8шт.

3

851826C1

ROD

- indicator, bucket indicator

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

4

851704C1

ANGLE

- indicator support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

5

1329594C1

PIN,28.57mm OD x 195mm L

- boom pivot (replaces 851771C1)

2шт.

6

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

4шт.

7

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.
