Запчасти Case IH 2350 (5-14) - HAY GRAPPLE FORK, DISCONTINUED 1978, 2350 AND 2450 LOADERS

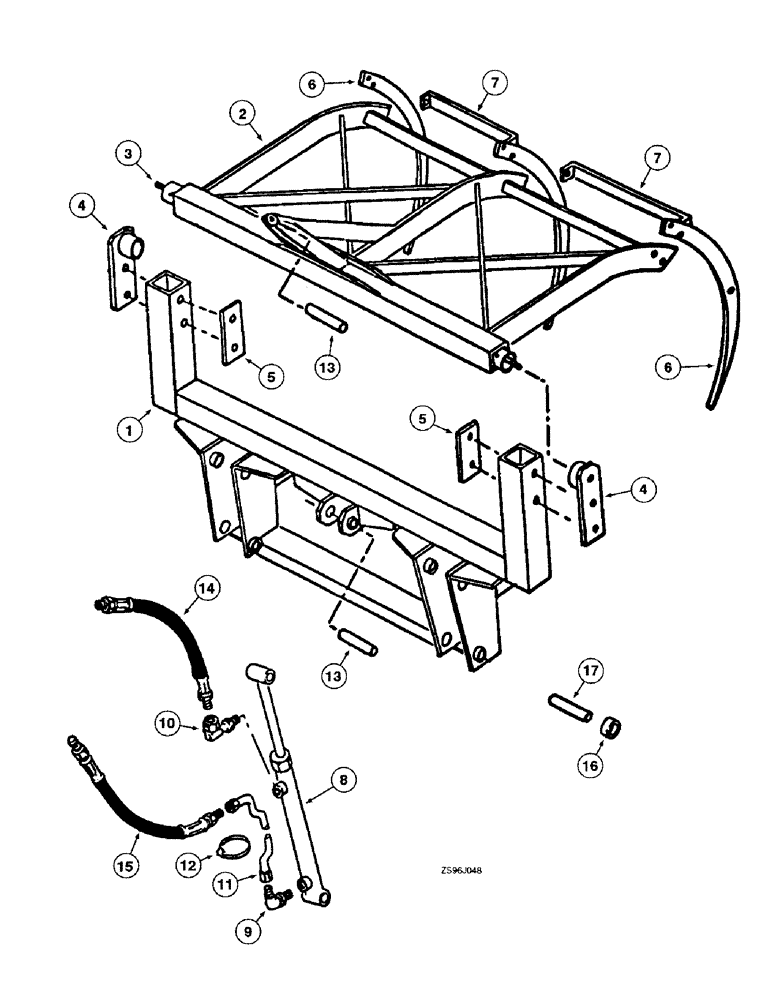

Схема запчастей Case IH 2350 - (5-14) - HAY GRAPPLE FORK, DISCONTINUED 1978, 2350 AND 2450 LOADERS
7
5
3
13
6
2
14
15
1
12
11
16
7
8
9
4
17
10
4
5
6
13

Артикул

Название

Примечание

Количество

1

851048C1

FRAME

ASSEMBLY - main

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

2

851049C1

ARM

ASSEMBLY - grapple

1шт.

3

851506C1

PIN

- grapple arm pivot

2шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

4

T53140

TOOTH

- hay grapple lower (replaces 851021C1), no longer available

10шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces 180134)

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

10шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

10шт.

5

T53900

U-BOLT

UBOLT - tine mouting (replaces 851120C1)

10шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

40шт.

6

T53104

TOOTH

- hay grapple upper (replaces 851027C1)

3шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

6шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

6шт.

7

T53901

BRACE

- tooth, tie (replaces 851050C1)

2шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548)

3шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

3шт.

8

851035C91

CYLINDER

ASSEMBLY - hay grapple fork, parts list Figure 5-31, no longer available, order T53894 cylinder, see below

1шт.

8

T53894

CYLINDER ASSY.

CYLINDER ASSEMBLY - hay grapple fork, parts list Figure 5-31

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: o-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

10

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- cylinder assembly (replaces 851088C1), Includes: o-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

11

851004C1

TUBE,19.187" L

ASSEMBLY - cylinder rear port

1шт.

12

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 degree, 1/2 female pipe x 1/2 inch male pipe (replaces 293351R91)

1шт.

13

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - tube, cylinder hay grapple fork (replaces 279028R91)

1шт.

14

61073C1

AXLE PIN

PIN - grapple cylinder (replaces 378479R1)

1шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

15

851444C1

PIN

- pivot, grapple cylinder

1шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

16

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

17

851114C1

HOSE

ASSEMBLY - third cylinder, 84 inch long

1шт.

18

851113C1

HOSE

ASSEMBLY - third cylinder, 72 inch long

1шт.

19

378555R1

SPACER

BUSHING - spacer

4шт.
