Запчасти Case IH 2350 (5-02) - BLADE, 84 AND 96 INCH DOZER, 2250, 2350 AND 2450 LOADERS

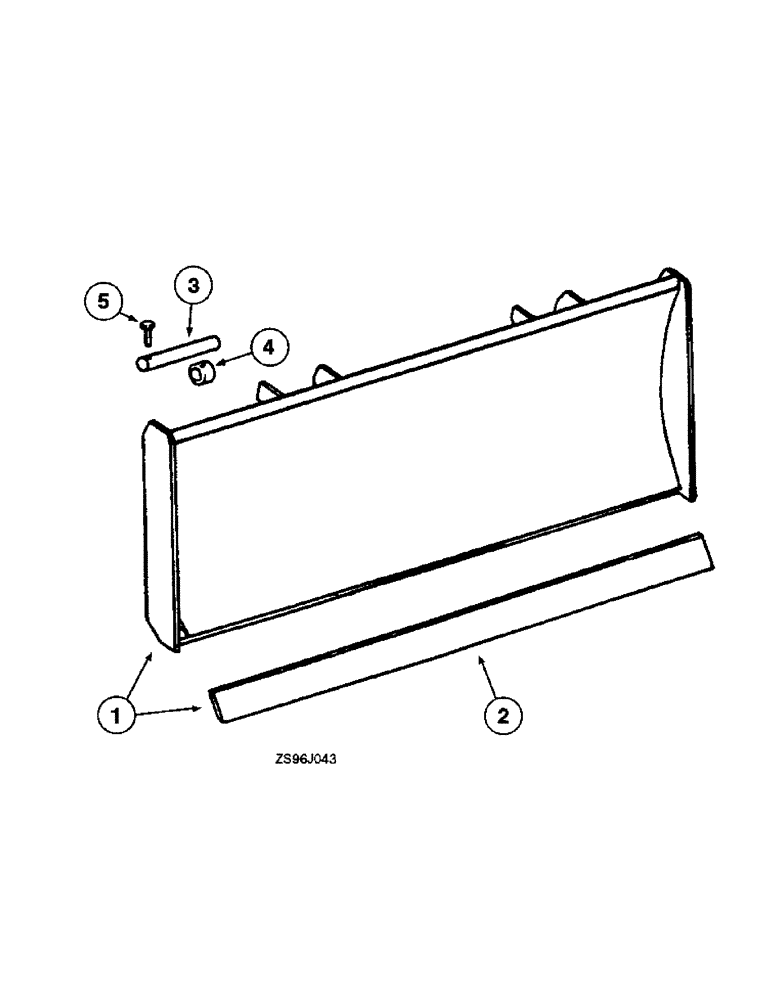

Схема запчастей Case IH 2350 - (5-02) - BLADE, 84 AND 96 INCH DOZER, 2250, 2350 AND 2450 LOADERS
5
4
3
1
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BLADE - 84 inch dozer, serviced only as a machine attachment, Includes: Ref. 2

1шт.

1

REF

INSTRUCTION

BLADE - 96 inch dozer, serviced only as a machine attachment, Includes: Ref. 2

1шт.

2

851002C1

BLADE

EDGE - cutting, 84 inch

1шт.

2

851003C1

BLADE

EDGE - cutting, 96 inch

1шт.

3

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

4

378555R1

SPACER

BUSHING - spacer, for bucket cylinder pin

4шт.

5

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

Выбрано товаров: 8
