Запчасти Case IH 2350 (3-54) - WELDED DOUBLE ACTING CYLINDERS, 3 ID X 34 INCH STROKE

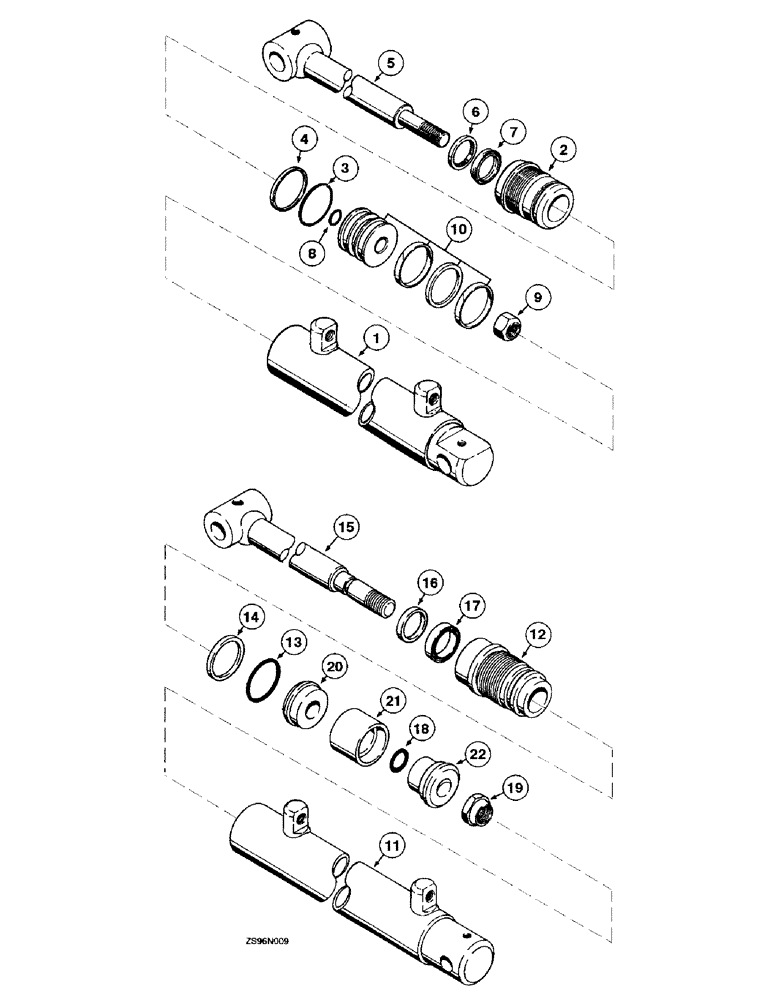

Схема запчастей Case IH 2350 - (3-54) - WELDED DOUBLE ACTING CYLINDERS, 3 ID X 34 INCH STROKE
1
7
18
13
4
15
22
19
3
9
16
5
8
14
10
6
12
2
20
11
17
21

Артикул

Название

Примечание

Количество

853600C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 ID x 34 stroke, 3/4 -16 inch ports, no longer available, order 1980144C1 cylinder assembly, See Figure 3-56, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

2

851369C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 851376C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 851376C91

1шт.

5

851367C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 851376C91

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 851376C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 851376C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with seals

1шт.

Part of seal kit P/N 851376C91

1шт.

851376C91

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 8 and 10

1шт.

850918C91

CYLINDER

ASSEMBLY - 3 ID x 34 stroke, 3/4 -16 inch ports, no longer available, order 1980144C1 cylinder assembly, See Figure 3-56, Includes: Ref. 11 - 22

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

12

850929C1

END

GLAND - cylinder, no longer available

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 850930C92

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 850930C92

1шт.

15

850926C1

ROD ASSY.

ROD - piston

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 850930C92

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 850930C92

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 850930C92

1шт.

19

131-41

LOCK NUT,1 1/4"-12, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

Ref. 19 P/N 131-41, per dealers call and per the P/N on Figure 3-50, size of nut should read 1-1/4" NF thread

1шт.

20

850927C1

PISTON

- split, rod end

1шт.

21

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

Part of seal kit P/N 850930C92

1шт.

22

850928C1

PISTON

- split, nut end

1шт.

850930C92

SEAL KIT

- seal, Includes: Ref. 13, 14, 16, 17, 18 and 21

1шт.

Выбрано товаров: 39
