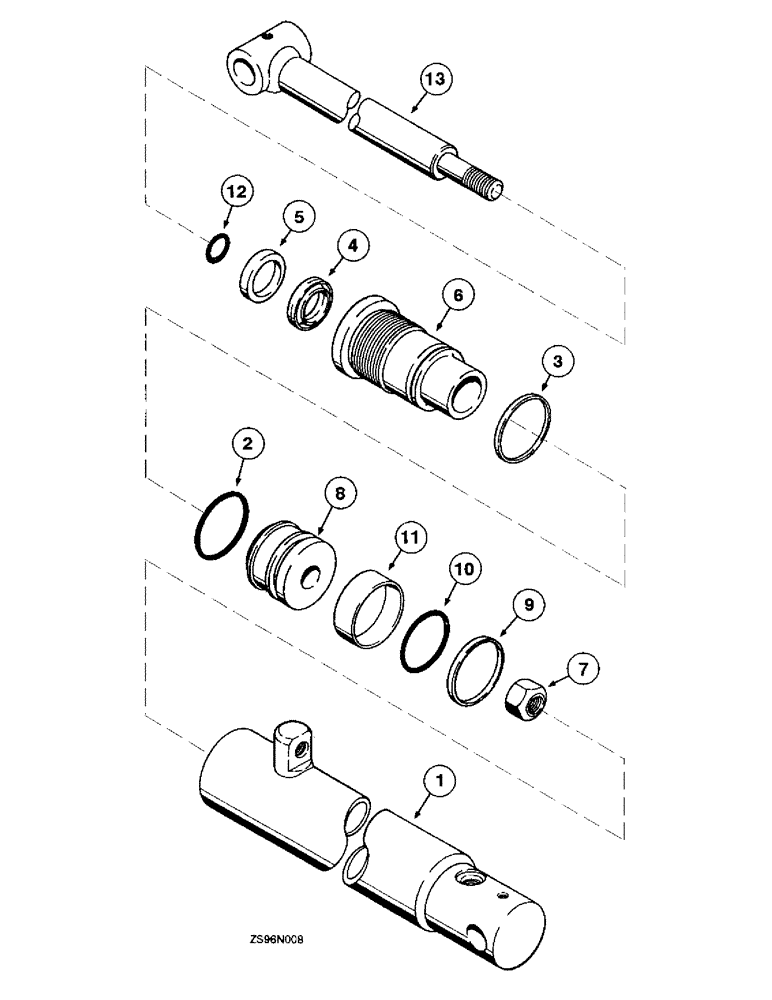

Запчасти Case IH 2350 (3-52) - BUCKET CYLINDER, 2-1/2 INCH BORE X 22-3/8 INCH STROKE

1272456C91

CYLINDER,Double Acting, 38.1mm Rod, 568.33mm Stroke

ASSEMBLY - 2-1/2 ID X 22-3/8 inch stroke, Includes: Ref. 1 - 13

2шт.

1272456C91R

REMAN-HYD CYLINDER

2350 CASE IH FRONT END LOADER, ASSEMBLY, 2-1/2 ID X 22-3/8 inch stroke

2шт.

1272456C91C

CORE-HYD CYLINDER

Return Number

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - bucket cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal kit P/N 93325C2

1шт.

3

NSS

NOT SOLD SEPARAT

BACKUP - O-ring

1шт.

Part of seal kit P/N 93325C2

1шт.

4

NSS

NOT SOLD SEPARAT

U-CUP - piston rod

1шт.

Part of seal kit P/N 93325C2

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 93325C2

1шт.

6

93324C1

HEAD

GLAND - cylinder

1шт.

7

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1) 7/8"-14, GC

1шт.

8

93323C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 93325C2

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N 93325C2

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal kit P/N 93325C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 93325C2

1шт.

13

93327C1

ROD ASSY.

ROD - piston

1шт.

93325C2

SEAL KIT

- seal, Includes: Ref. 2 - 5 and 9 - 12

1шт.
