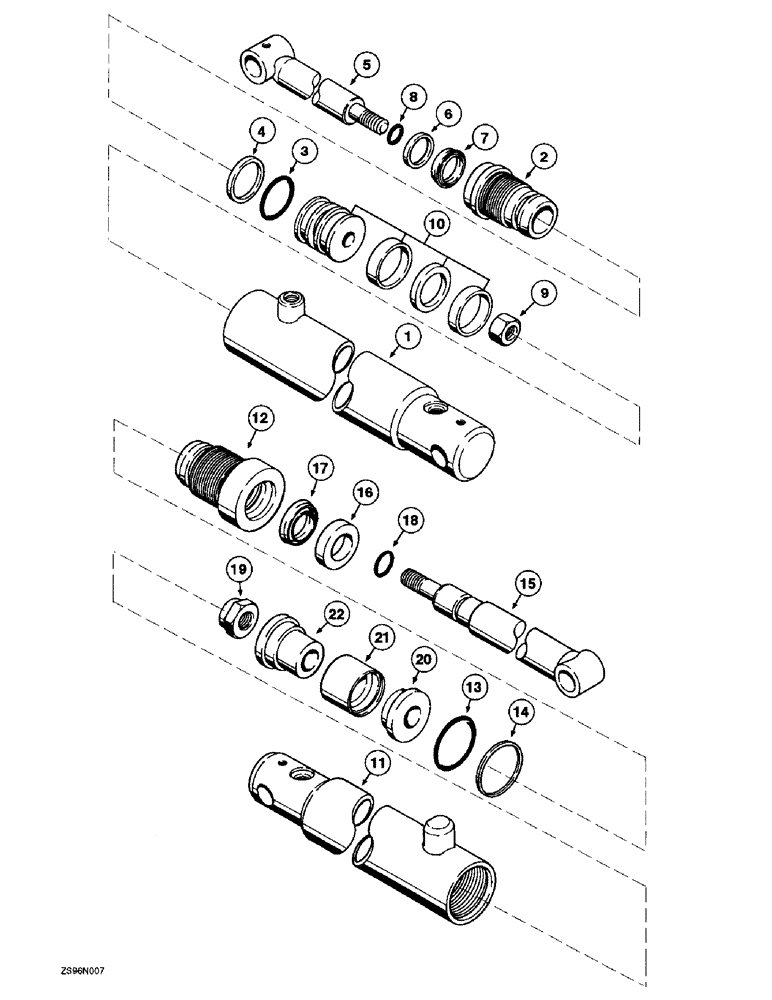

Запчасти Case IH 2350 (3-50) - BUCKET CYLINDER, 2-1/2 INCH BORE X 22-3/8 INCH STROKE

853603C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, 3/4-16 inch ports, no longer available, order 1272456C91 cylinder assembly, See Figure 3-52, Includes: Ref. 1 - 10

1шт.

1272456C91R

REMAN-HYD CYLINDER

2350 CASE IH FRONT END LOADER, ASSEMBLY, 2-1/2 ID x 22-3/8 stroke, 3/4-16 inch ports, Reman for New PN 853603C91

1шт.

1272456C91C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

2

852989C1

GLAND

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 852995C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 852995C91

1шт.

5

851391C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with seals

1шт.

Part of seal kit P/N 852995C91

1шт.

852995C91

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 8 and 10

1шт.

850917C91

CYLINDER

ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, 3/4-16 inch ports, no longer available, order 1272456C91 cylinder assembly, See Figure 3-52, Includes: Ref. 11 - 22

1шт.

1272456C91R

REMAN-HYD CYLINDER

2350 CASE IH FRONT END LOADER, ASSEMBLY, 2-1/2 ID x 22-3/8 stroke, 3/4-16 inch ports, Reman for New PN 850917C91

1шт.

1272456C91C

CORE-HYD CYLINDER

Return Number

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

12

850923C1

END

GLAND - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 2-1/8 ID x 2 -1/2 inch OD, gland

1шт.

Part of seal kit P/N 850924C92

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 850924C92

1шт.

15

850920C1

ROD

- piston

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 850924C92

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 850924C92

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1-1/8 ID x 1 -1/4 inch OD, piston rod

1шт.

Part of seal kit P/N 850924C92

1шт.

19

131-41

LOCK NUT,1 1/4"-12, GB

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

20

850921C1

PISTON

- split, rod end

1шт.

21

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

Part of seal kit P/N 850924C92

1шт.

22

850922C1

PISTON

- split, nut end

1шт.

850924C92

SEAL KIT

- seal, Includes: Ref. 13, 14, 16, 17, 18 and 21

1шт.
