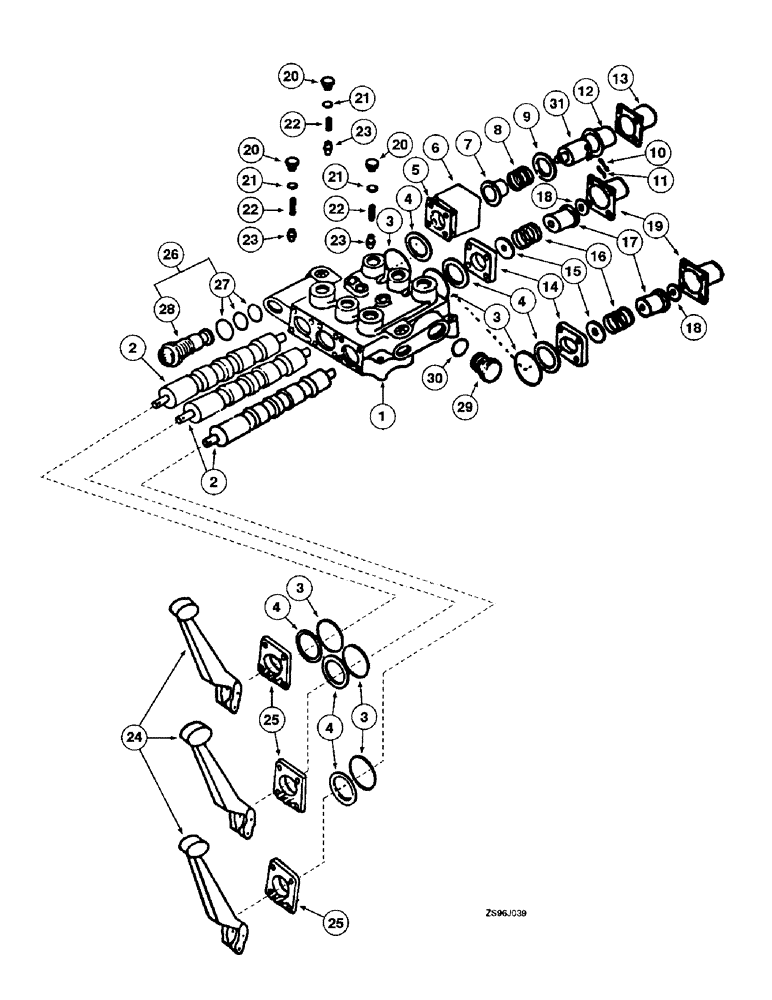

Запчасти Case IH 2350 (3-46) - LOADER CONTROL VALVE, WITH THREE SPOOL UNIBODY

T57492

VALVE

ASSEMBLY - loader control, three spool (replaces 851095C91), Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve, order valve assembly

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve, order valve assembly

3шт.

3

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

(Replaces 350818R1) -214, 70 Duro, .984" ID x .139" Thk

6шт.

Part of seal kit P/N 851162C1

1шт.

4

D54585

WASHER

- O-ring back-up (replaces 851140C1)

6шт.

5

D54584

STOP

- end plate (replaces 851141C1)

1шт.

6

T53389

SPACER

- end cap (replaces 851142C1)

1шт.

7

R24872

SPRING SEAT

COLLAR - stop (replaces 851143C1)

1шт.

8

851144C1

SPRING

- centering

1шт.

9

T53390

SPACER

WASHER - stop (replaces 851145C1)

1шт.

10

851146C1

SPRING

- detent

2шт.

11

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (replaces 17008R1)

4шт.

12

T53392

SLEEVE

RETAINER - detent (replaces 851147C1)

1шт.

13

D54582

CYLINDER END CAP

CAP - end (replaces 851148C1 )

1шт.

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

SCREW - hex socket, 1/4 NC x 3/4 inch (replaces 138205)

4шт.

14

D54583

SPACER

- end cap (replaces 851150C1)

2шт.

15

851149C1

WASHER

- stop

2шт.

16

D54586

SPRING

- centering (replaces 851151C1)

2шт.

17

D54581

COLLAR CLAMP

COLLAR - spring (replaces 851152)

2шт.

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - cap, hex socket 1/4 NC x 1/2 inch (replaces 216277)

2шт.

18

495-21031

WASHER,1/4"

- heavy lock, 5/16 inch (replaces 851153C1)

2шт.

19

D54582

CYLINDER END CAP

CAP - end (replaces 851154C1 )

2шт.

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

SCREW, (Replaces 138201) Hex Soc Hd, 1/4"-20 x 3/4"

8шт.

20

D63363

PLUG

- load check (replaces 851168C1)

3шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

3шт.

Part of seal kit P/N 851162C1

1шт.

22

D54587

VALVE SPRING

SPRING - load check (replaces 851155C1)

3шт.

23

D54589

VALVE

- check (replaces 851156C1)

3шт.

24

851158C1

HANDLE

LEVER - control

3шт.

25

B17218

BRACKET

- handle (replaces 851159C1)

3шт.

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - cap, hex socket, 1/4 NC x 1/2 inch (replaces 216277)

12шт.

26

D54590

PLUG

ASSEMBLY - no relief (replaces 851157C1), Includes: Ref. 27 & 28

1шт.

27

851165C1

SEAL KIT

plug seal, consists of (2) O-rings and (1) washer

1шт.

Part of seal kit P/N 851162C1

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - order plug D54590

1шт.

29

273916

PLUG,Hex, 1-5/16" - 12 ORB

Conversion (Replaces 9410363), Includes Ref. 30 Hex Hd, 1 5/16"-12 ORB

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (replaces 296247R1)

1шт.

Part of seal kit P/N 851162C1

1шт.

31

NSS

NOT SOLD SEPARAT

DETENT - valve, order valve assembly

1шт.

851162C1

SEAL KIT

- seal service, Includes: Refs. 3, 21, 27 and 30

1шт.
