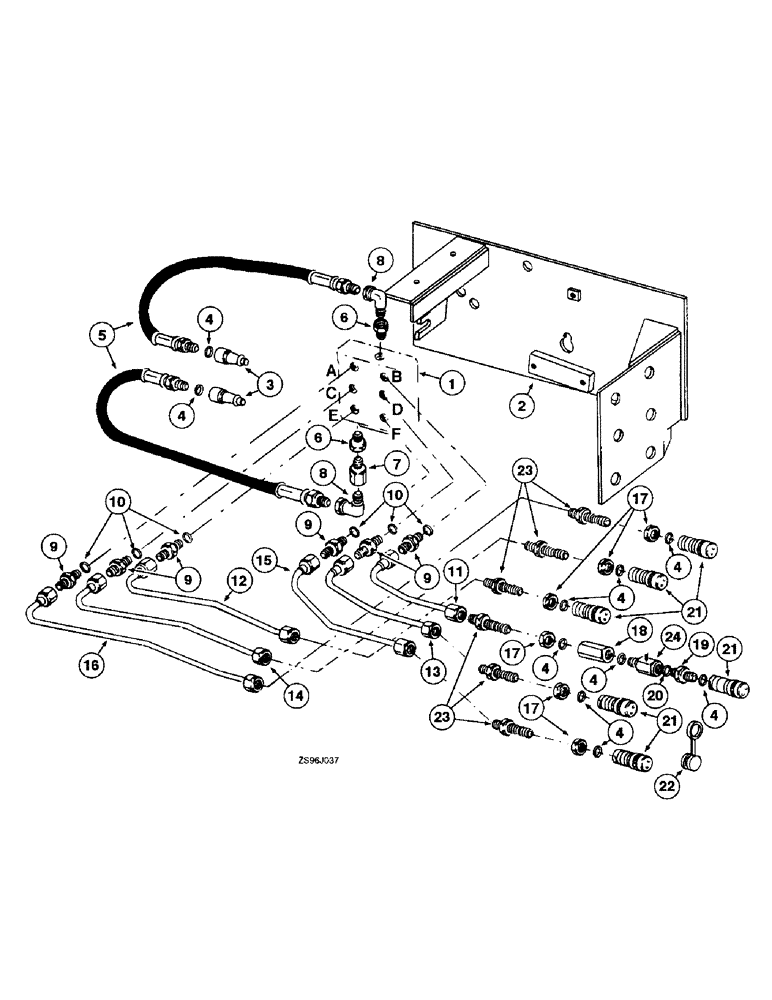

Запчасти Case IH 2350 (3-40) - TRACTOR VALVE TO EXTERNAL VALVE SYSTEM, USING THREE SPOOL VALVE

1

T57492

VALVE

ASSEMBLY - loader control, refer to loader control valve, three spool unibody

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces 180130) Hex, 3/8"-16 x 2", G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

2

851096C1

BRACKET

ASSEMBLY - control valve mounting

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch (replaces 271767)

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(Replaces 271777) Hex, 3/4"-10 x 3 1/2", G5

2шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer 131046) 3/4"

4шт.

3

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

15шт.

5

REF

INSTRUCTION

HOSE - 85 inch, tractor valve to external valve, SAE 100R2 two wire braid with 7/8-14 male fixed O-ring boss at one end and 1/2-14 male pipe rigid at other end, recommended hydraulics, for service order 4300189R91 hose assembly

2шт.

5

4300189R91

HOSE

ASSEMBLY - 1/2 ID x 85 inch long, 7/8-14 male fixed O-ring boss and 1/2 inch male pipe rigid, no longer available

2шт.

6

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

ADAPTER - 3/4 x 1/2 inch, pipe reducer (replaces 144034 )

2шт.

7

T53145

CHECK VALVE

VALVE ASSEMBLY - hydraulic pressure check (replaces 851097C91 )

1шт.

8

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 90 degree, 1/2 inch female pipe x 1/2 inch male pipe (replaces 293351R91)

2шт.

9

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - flared tube, 5/8 inch tube (replaces 9402710), Includes: Ref. 10

6шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

11

851098C1

TUBE,7.75", 3" L

ASSEMBLY - boom lift control front

1шт.

12

851099C1

TUBE,.625" OD x 11.125", 3.125" L

ASSEMBLY - boom lift control rear

1шт.

13

851100C1

TUBE,.625" OD x 7.969", 3" L

ASSEMBLY - bucket control front

1шт.

14

851101C1

TUBE,.625" OD x 11.375", 3.125" L

ASSEMBLY - bucket control rear

1шт.

15

851102C1

TUBE,.625" OD x 8.156", 3" L

ASSEMBLY - circuit control front

1шт.

16

851103C1

TUBE,.625" OD x 11.562", 1.125" L

ASSEMBLY - circuit control rear

1шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, , 5/8 inch OD tube (Replaces 9403295) Blkhd, 7/8"-14

6шт.

18

584802R1

CONNECTOR, ELEC

UNION - 7/8-14 straight third O-ring adaptor

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (replaces 9410204), Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

21

T55720

COUPLING

COUPLER ASSEMBLY - self-sealing, female pioneer no. 4050-16, for use with male coupling 851108C91 with pioneer no. 5010-4 (replaces 851109C91 ), no longer available

6шт.

21

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (replaces 395150R91)

6шт.

22

373220R1

PLUG

- dust, plastic

6шт.

22

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

6шт.

23

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

6шт.

495-21094

WASHER,7/8"

- flat, 15/16 x 2-1/4 x 9/64 inch (replaces 131001 )

12шт.

24

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - oil flow

1шт.
