Запчасти Case IH 2350 (3-34) - BOOM LIFT HYDRAULIC SYSTEM

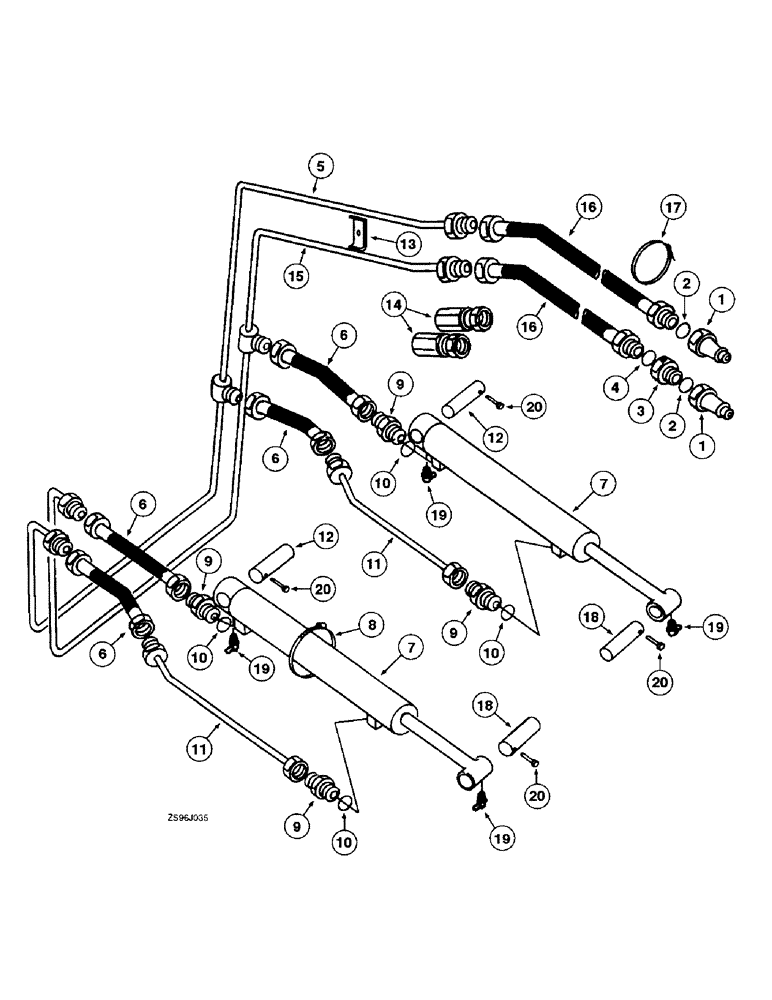

Схема запчастей Case IH 2350 - (3-34) - BOOM LIFT HYDRAULIC SYSTEM
9
1
3
1
20
4
13
19
6
20
2
12
11
20
17
19
20
18
15
11
16
10
7
19
10
9
16
18
12
9
7
9
19
14
5
6
6
2
10
10
8
6

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

3

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - oil flow to tractor valve not for use with external valve system in this position

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

5

851763C1

TUBE

ASSEMBLY - boom lower with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2350C1111, for service order 1, 851559C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

5

851559C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - boom lower with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2350C1112, or serial no. 501 and above (replaces 851763C1)

1шт.

6

851789C2

HOSE

- hydraulic, boom cylinder, 20-1/2 inches long

4шт.

7

853600C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 ID x 34 stroke, parts list Figure 3-54, no longer available, order 1980144C1 cylinder, see below

2шт.

7

850918C91

CYLINDER

ASSEMBLY - 3 ID x 34 stroke, parts list Figure 3-54, no longer available, order 1980144C1 cylinder, see below

2шт.

7

1980144C1

CYLINDER

ASSEMBLY - 3 ID x 34 stroke, parts list Figure 3-56

2шт.

8

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - hydraulic hose (replaces 391671R91)

2шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 10

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

11

851786C1

HYD TUBE,12.70 mm OD x 29, 7 mm L

TUBE ASSEMBLY - boom cylinder

2шт.

12

851506C1

PIN

- boom cylinder

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

4шт.

13

851448C1

CLAMP

- hydraulic tube

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

14

851107C1

CONNECTOR, ELEC

CONNECTOR - for use withT54630 hoses

2шт.

15

851764C1

TUBE

ASSEMBLY - boom raise, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2350C1111, for service order 1, 851560C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

15

851560C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - boom raise, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2350C1112 or serial no. 501 and above (replaces 851764C1)

1шт.

16

851772C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection

2шт.

16

851773C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection

2шт.

16

4300190R91

HOSE

ASSEMBLY - 1/2 ID x 160 inch long, 7/8-14 JIC female swivel and 7/8-14 male fixed O-ring boss, no longer available

2шт.

16

4300189R91

HOSE

ASSEMBLY - 1/2 ID x 85 inch long, 7/8-14 male fixed O-ring boss and 1/2 male pipe rigid, no longer available

2шт.

16

T54630

HOSE

ASSEMBLY - 1/2 ID x 160 inch long, 1/2 male pipe rigid both ends (replaces 851116C1), no longer available

2шт.

16

REF

INSTRUCTION

HOSE - bulk, 1/2 ID SAE 100R2, two wire braid, cut to required length from 50 feet roll marked 990629R1 and use appropriate fittings

1шт.

17

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hose

1шт.

18

851444C1

PIN

- pivot, boom cylinder

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

4шт.

19

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

20

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.
