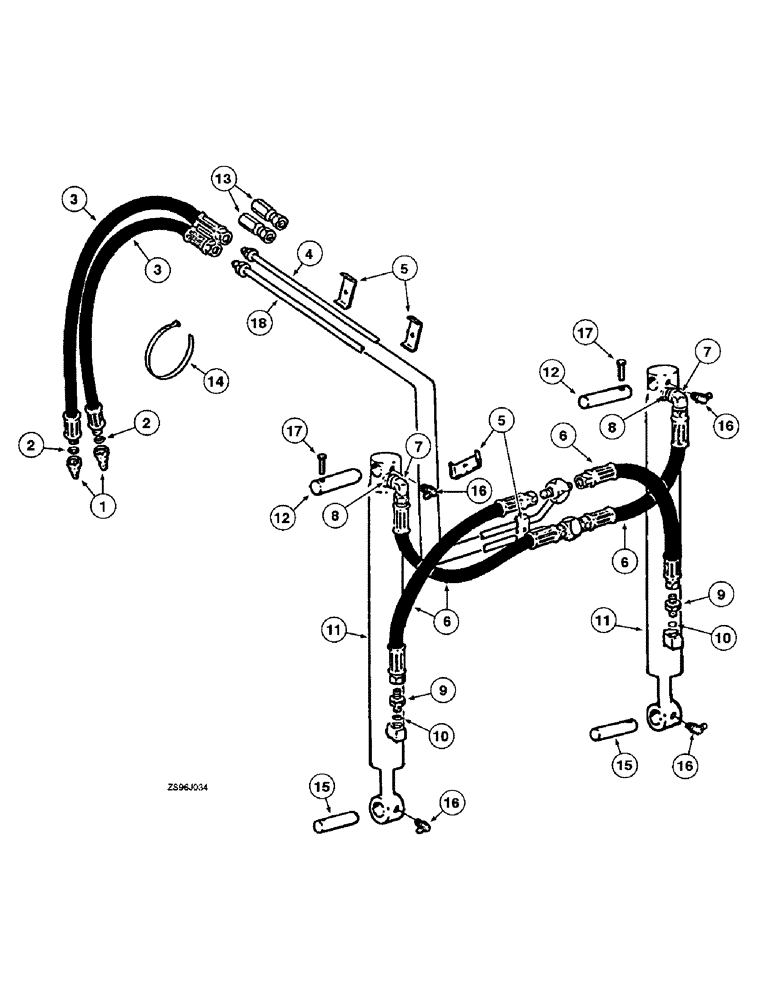

Запчасти Case IH 2350 (3-30) - BUCKET HYDRAULIC SYSTEM

1

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

3

851772C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection

2шт.

3

851773C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection

2шт.

3

4300190R91

HOSE

ASSEMBLY - 1/2 ID x 160 inch long, 7/8-14 JIC female swivel and 7/8-14 male fixed O-ring boss, no longer available

2шт.

3

4300189R91

HOSE

ASSEMBLY - 1/2 ID x 85 inch long, 7/8-14 male fixed O-ring boss and 1/2 male pipe rigid, no longer available

2шт.

3

T54630

HOSE

ASSEMBLY - 1/2 ID x 160 inch long, 1/2 male pipe rigid both ends (replaces 851116C1), no longer available

2шт.

3

REF

INSTRUCTION

HOSE - bulk, 1/2 ID SAE 100R2 two wire braid, cut to required length from 50 feet roll marked 990629R1 and use appropriate fittings

1шт.

4

851784C1

TUBE

ASSEMBLY - bucket rollback, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2350C1111, for service order 1, 851566C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

4

851566C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - bucket rollback, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2350C1112, or serial no. 501 and above

1шт.

5

851729C1

HOSE CLAMP

CLAMP - hose, tube

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

6

L100703

HOSE

ASSEMBLY - hydraulic, bucket cylinder, 34 inch long, (replaces 851788C2)

4шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

4шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

4шт.

11

850917C91

CYLINDER

ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, parts list Figure 3-50, no longer available, order 1272456C91 cylinder, see below

2шт.

11

1272456C91R

REMAN-HYD CYLINDER

2350 CASE IH FRONT END LOADER, ASSEMBLY, 2-1/2 ID x 22-3/8 stroke, Reman for New PN 850917C91

2шт.

11

1272456C91C

CORE-HYD CYLINDER

Return Number

2шт.

11

853603C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, parts list Figure 3-50, no longer available, order 1272456C91 cylinder, see below

2шт.

11

1272456C91R

REMAN-HYD CYLINDER

2350 CASE IH FRONT END LOADER, CYLINDER ASSEMBLY, 2-1/2 ID x 22-3/8 stroke, Reman for New PN 853603C91

2шт.

11

1272456C91C

CORE-HYD CYLINDER

Return Number

2шт.

11

1272456C91

CYLINDER,Double Acting, 38.1mm Rod, 568.33mm Stroke

ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, parts list Figure3-52

2шт.

11

1272456C91R

REMAN-HYD CYLINDER

2350 CASE IH FRONT END LOADER, ASSEMBLY, 2-1/2 ID x 22-3/8 stroke

2шт.

11

1272456C91C

CORE-HYD CYLINDER

Return Number

2шт.

12

851444C1

PIN

- pivot, bucket cylinder boom

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

4шт.

13

851107C1

CONNECTOR, ELEC

CONNECTOR - for use with T54630 hoses

2шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hose

1шт.

15

REF

INSTRUCTION

PIN - bucket, cylinder rod and boom, for service, Serial Range: refer-buckets

4шт.

16

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

17

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

18

851785C1

TUBE

ASSEMBLY - bucket dump, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2350C1111, for service order 1, 851567C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

18

851567C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - bucket dump, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2350C1112 or serial no. 501 and above

1шт.
