Запчасти Case IH 2255 (8-08) - 1329539C91 CONTROL HYDRAULICS, TRACTORS WITHOUT CAB (08) - HYDRAULICS

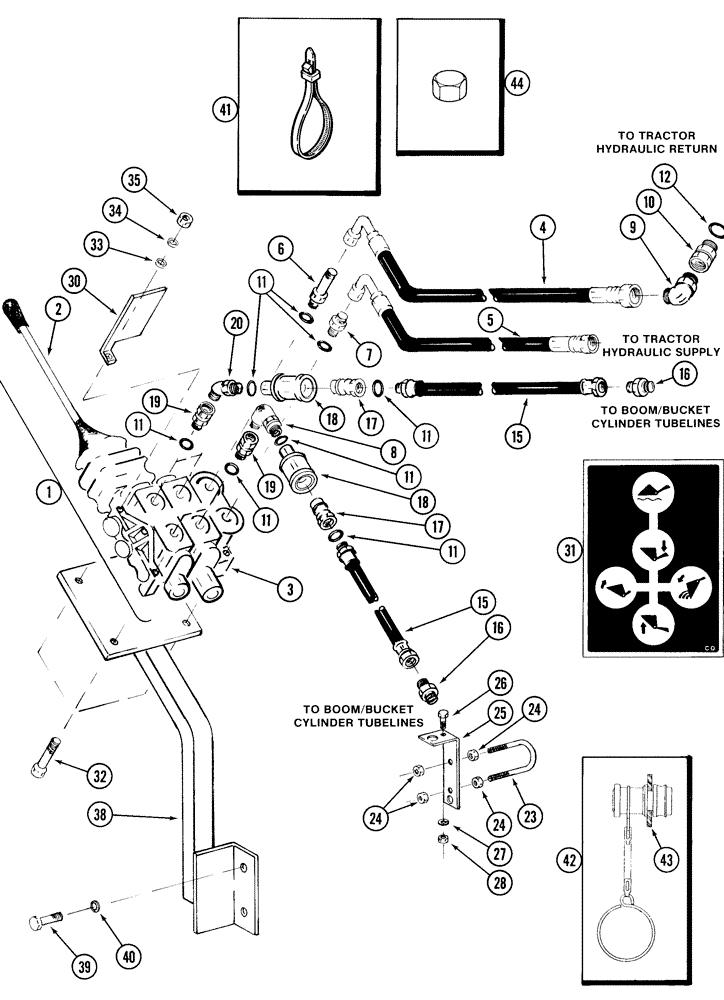

Схема запчастей Case IH 2255 - (8-08) - 1329539C91 CONTROL HYDRAULICS, TRACTORS WITHOUT CAB (08) - HYDRAULICS
11
11
3
32
15
33
24
44
35
11
30
40
5
7
18
26
10
8
15
38
34
41
6
17
24
2
18
1
11
16
27
16
9
20
43
24
12
39
28
42
19
11
31
11
19
25
4
17
23

Артикул

Название

Примечание

Количество

1

1329539C91

VALVE

ASSEMBLY, hydraulic with control

1шт.

2

NSS

NOT SOLD SEPARAT

CONTROL ASSEMBLY, direct, hydraulic valve, See Fig. 8-18

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY, hydraulic control, See Fig. 8-30

1шт.

4

1329583C1

HOSE ASSY.

90 inch, (2286 mm) long

1шт.

5

1329584C2

HOSE ASSY.

72 inch, (1829 mm) long

1шт.

6

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 7/8-14 inch, flare x o-ring boss, long

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch, flare x o-ring boss, short

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

2шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

10

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

straight, 7/8-14 flare x 1-5/16-12 inch o-ring boss

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

14шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

1329585C2

HOSE

60 inch, (1524 mm) long

4шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

4шт.

17

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF

4шт.

18

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch NF

1шт.

19

485313R1

FITTING

CONNECTOR swivel

4шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

2шт.

23

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U, 5/16 inch NF

1шт.

24

425-115

NUT,5/16"-24, G5

4шт.

25

90868C1

ANGLE

hose support

1шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

492-11031

LOCK WASHER,5/16"

1шт.

28

425-105

NUT,5/16"-18, G5

1шт.

30

1329586C1

SUPPORT

PLATE decal mounting

1шт.

31

1334154C1

PRODUCT GRAPHIC

DECAL loader control pattern

1шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

33

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

3шт.

34

492-11038

LOCK WASHER,3/8"

3шт.

35

425-106

NUT,3/8"-16, Cl 5

3шт.

38

1329613C2

SUPPORT

BRACKET valve mounting

1шт.

39

326-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

2шт.

40

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

41

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

42

1954133C1

PLUG

coupling, dust, Includes Ref. 43

1шт.

43

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

1шт.

44

218-756

CAP,37 Degree, 7/8"-14

1шт.

Выбрано товаров: 37
