Запчасти Case IH 2255 (8-06) - BOOM CYLINDER, 2-1/2 INCH BORE X 28-3/16 INCH STROKE (08) - HYDRAULICS

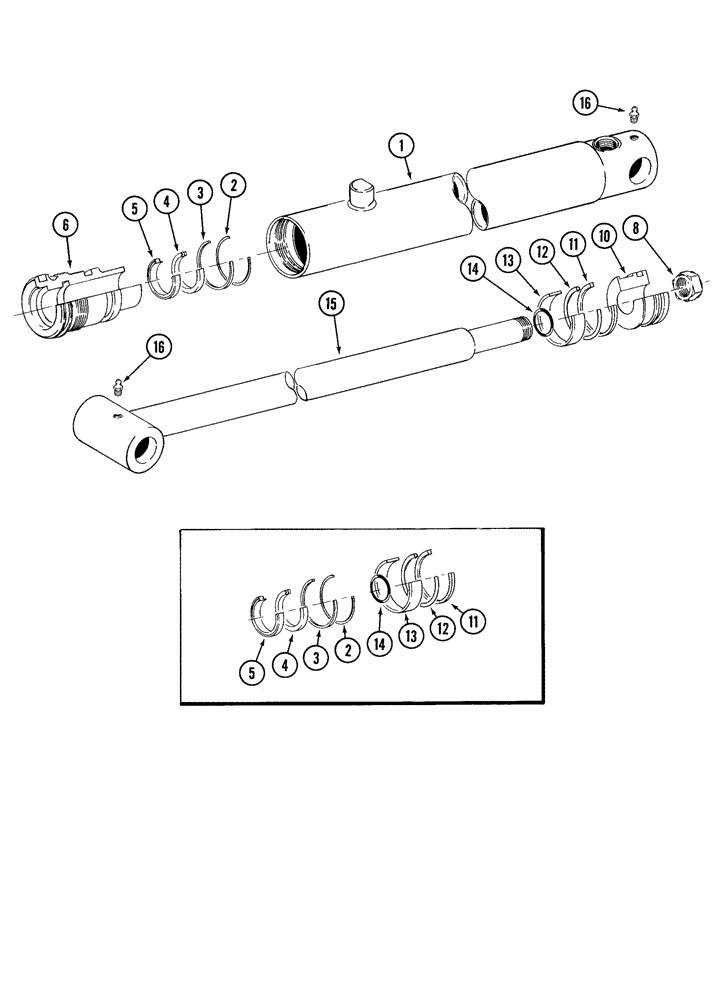

Схема запчастей Case IH 2255 - (8-06) - BOOM CYLINDER, 2-1/2 INCH BORE X 28-3/16 INCH STROKE (08) - HYDRAULICS
10
13
13
11
12
2
8
14
4
16
5
5
16
4
14
15
6
2
1
3
12
3
11

Артикул

Название

Примечание

Количество

1272455C91

HYDRAULIC CYLINDER

ASSEMBLY, 2-1/2 (63.5) ID x 28-3/16 inch (716 mm) stroke, Includes Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, boom cylinder (Order 1272455C91)

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING cylinder head

1шт.

Part of repair cylinder kit 93325C2

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING backup

1шт.

Part of repair cylinder kit 93325C2

1шт.

4

NSS

NOT SOLD SEPARAT

U-CUP piston rod

1шт.

Part of repair cylinder kit 93325C2

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of repair cylinder kit 93325C2

1шт.

6

93324C1

HEAD

GLAND cylinder

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

1шт.

10

93323C1

PISTON

cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of repair cylinder kit 93325C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of repair cylinder kit 93325C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of repair cylinder kit 93325C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of repair cylinder kit 93325C2

1шт.

15

93322C1

ROD ASSY.

piston

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

93325C2

SEAL KIT

repair cylinder, includes Refs. 2, 3, 4, 5, 11, 12, 13, and 14

1шт.
