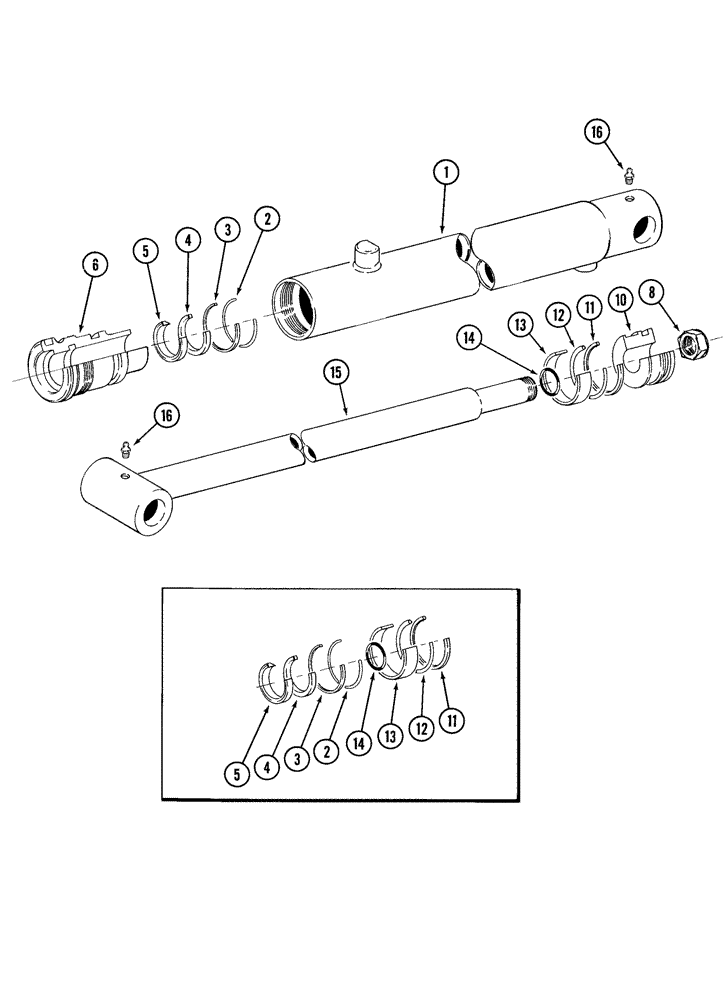

Запчасти Case IH 2255 (8-04) - BUCKET CYLINDER, 2-1/2 INCH BORE X 22-3/8 INCH STROKE (08) - HYDRAULICS

1272456C91

CYLINDER,Double Acting, 38.1mm Rod, 568.33mm Stroke

ASSEMBLY, 2-1/2 (63.5) ID x 22-3/8 inch (568 mm) stroke , Includes Ref. 1 - 15

2шт.

1272456C91R

REMAN-HYD CYLINDER

2255 CASE IH MOUNT-O-MATIC FRONT END LOADER, ASSEMBLY, 2-1/2 (63.5) ID x 22-3/8 inch (568 mm) stroke

2шт.

1272456C91C

CORE-HYD CYLINDER

Return Number

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, bucket cylinder, (Order 1272456C91)

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING cylinder head

1шт.

Part of repair cylinder kit 93325C2

1шт.

3

NSS

NOT SOLD SEPARAT

BACKUP o-ring

1шт.

Part of repair cylinder kit 93325C2

1шт.

4

NSS

NOT SOLD SEPARAT

U-CUP piston rod

1шт.

Part of repair cylinder kit 93325C2

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of repair cylinder kit 93325C2

1шт.

6

93324C1

HEAD

GLAND cylinder

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

1шт.

10

93323C1

PISTON

cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of repair cylinder kit 93325C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of repair cylinder kit 93325C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of repair cylinder kit 93325C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston ring

1шт.

Part of repair cylinder kit 93325C2

1шт.

15

93327C1

ROD ASSY.

piston

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

93325C2

SEAL KIT

repair cylinder, includes Refs. 2, 3, 4, 5, 11, 12, 13, and 14

1шт.
