Запчасти Case IH 2255 (8-02) - BUCKET AND BOOM HYDRAULICS (08) - HYDRAULICS

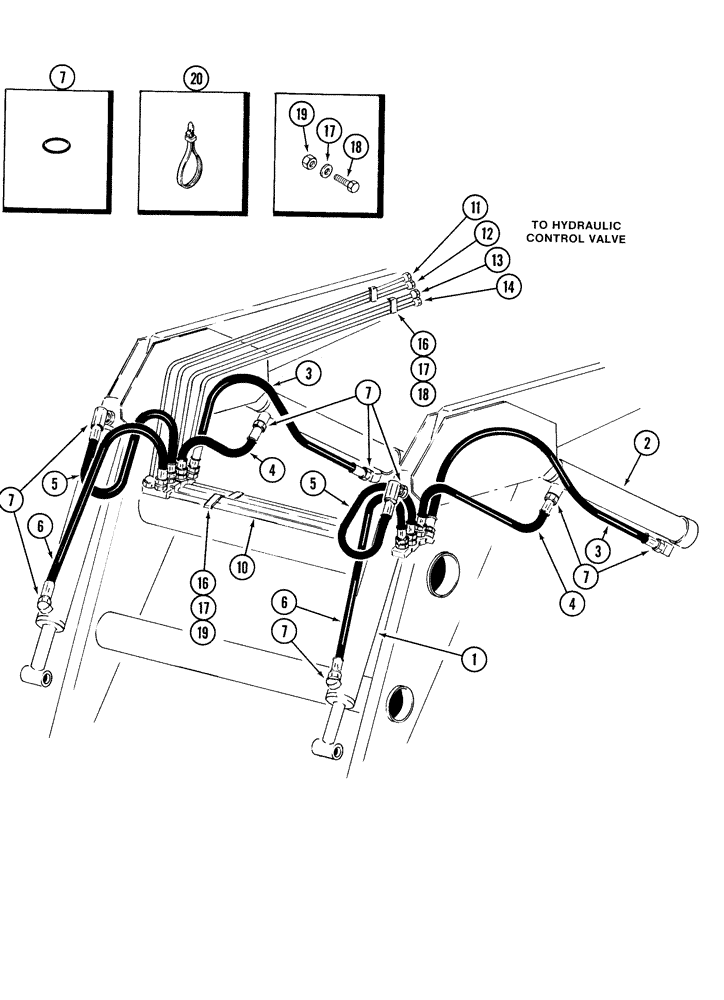

Схема запчастей Case IH 2255 - (8-02) - BUCKET AND BOOM HYDRAULICS (08) - HYDRAULICS
6
11
7
17
6
18
10
19
4
17
3
1
7
16
4
20
17
14
18
16
19
13
7
12
5
5
2
7
7
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, bucket, See Fig. 8-4

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY, boom, See Fig. 8-6

2шт.

3

1329578C2

HOSE ASSY.

54 inch, (1372 mm) long boom

2шт.

4

1329580C2

HOSE ASSY.

36 inch, (914 mm) long boom

2шт.

5

1329625C2

HOSE ASSY.

24 inch, (610 mm) long bucket

2шт.

6

1329579C2

HOSE ASSY.

36 inch (914 mm) long bucket rollback

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

10

1329587C1

HYD TUBE

front

2шт.

11

1329588C1

HYD TUBE

bucket rollback

1шт.

12

1329589C1

HYD TUBE

bucket dump

1шт.

13

1329590C1

HYD TUBE

boom raise

1шт.

14

1329591C1

HYD TUBE

boom lower

1шт.

16

1329654C1

CLIP

hydraulic tube

10шт.

17

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

8шт.

18

276-14832

SELF-TAP SCREW,Hex Hd, 5/16" x 2"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

4шт.

Выбрано товаров: 17
