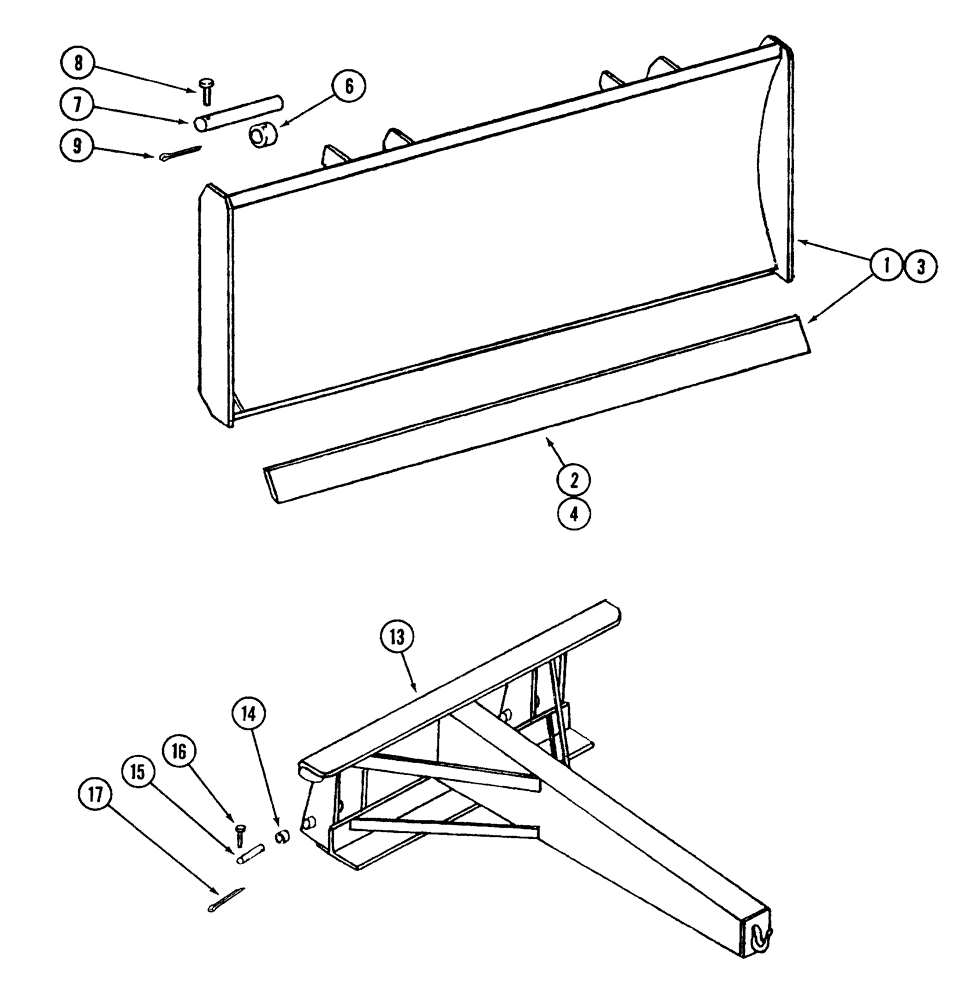

Запчасти Case IH 2255 (9-30) - DOZER BLADES (09) - CHASSIS/ATTACHMENTS

851077C91

ATTACHMENT dozer blade, 84 inch (Machinery Item), Includes Ref. 1 - 2 and Ref. 6 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE ASSEMBLY, dozer, 84 inch (Machinery Item) 1, Includes Ref. 3 - 9

1шт.

2

851002C1

BLADE

EDGE cutting, 84 inch

1шт.

851078C91

ATTACHMENT dozer blade, 96 inch (Machinery Item)

1шт.

3

NSS

NOT SOLD SEPARAT

BLADE ASSEMBLY, dozer, 96 inch (Machinery Item) 1

1шт.

4

851003C1

BLADE

EDGE cutting, 96 inch

1шт.

6

378555R1

SPACER

BUSHING

4шт.

7

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

8

851126C1

CLEVIS PIN

clevis, 5/16 x 2 inch

4шт.

9

119117

COTTER PIN,3/32" x 1/2"

4шт.

851085C91

ATTACHMENT boom, heavy duty (Machinery Item), Includes Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

BOOM ASSEMBLY, loader (Machinery Item) 1, heavy duty

1шт.

14

378555R1

SPACER

BUSHING, heavy duty boom

4шт.

15

1329594C1

PIN,28.57mm OD x 195mm L

pivot, heavy duty boom

4шт.

16

851126C1

CLEVIS PIN

clevis, 5/16 x 2 inch, heavy duty boom

4шт.

17

119117

COTTER PIN,3/32" x 1/2"

Heavy duty boom

4шт.
