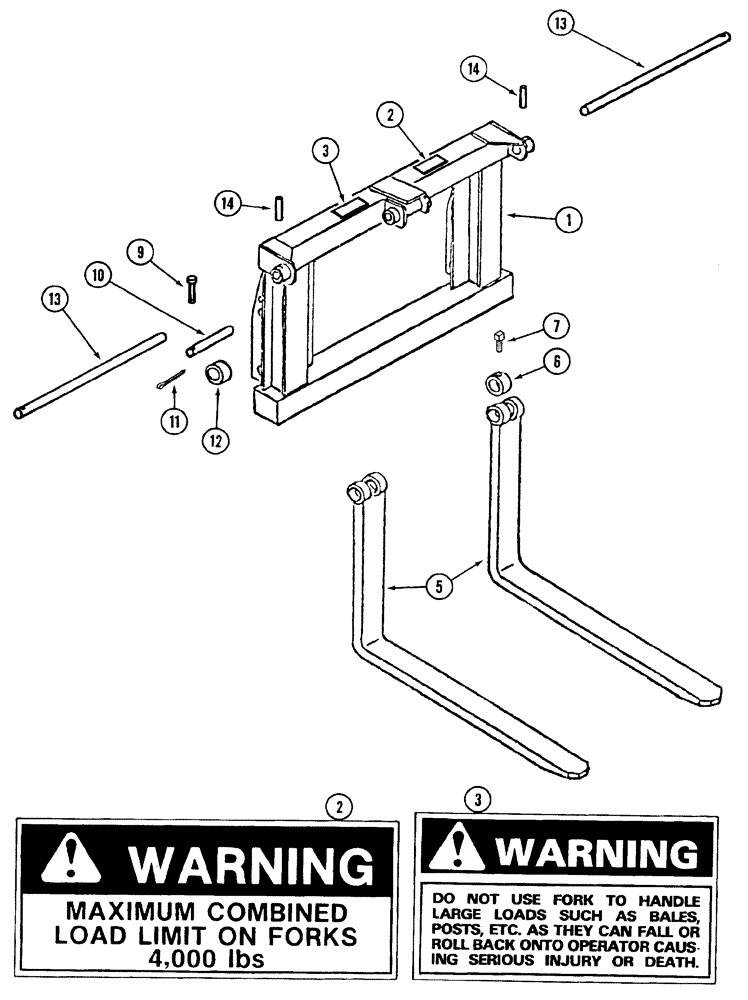

Запчасти Case IH 2255 (9-28) - FORK LIFT (09) - CHASSIS/ATTACHMENTS

851084C91

ATTACHMENT fork lift, loader (Machinery Item), Includes Ref. 1 - 14

1шт.

1

851074C1

FRAME

main

1шт.

2

321-4735

DECAL

warning, maximum load limit, See Fig. 9-32

1шт.

3

853649C1

PRODUCT GRAPHIC

DECAL warning, large load rollback, See Fig. 9-32

1шт.

5

T54640

TOOTH

fork lift

2шт.

6

T54642

BUSHING

lock

2шт.

7

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

set, square head, 3/8 NC x 1/2 inch, cup point

2шт.

9

851126C1

CLEVIS PIN

clevis, 5/16 x 2 inch

4шт.

10

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

11

119117

COTTER PIN,3/32" x 1/2"

4шт.

12

378555R1

SPACER

bushing

4шт.

13

T54641

PIN

ROD fork mounting

2шт.

14

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

2шт.
