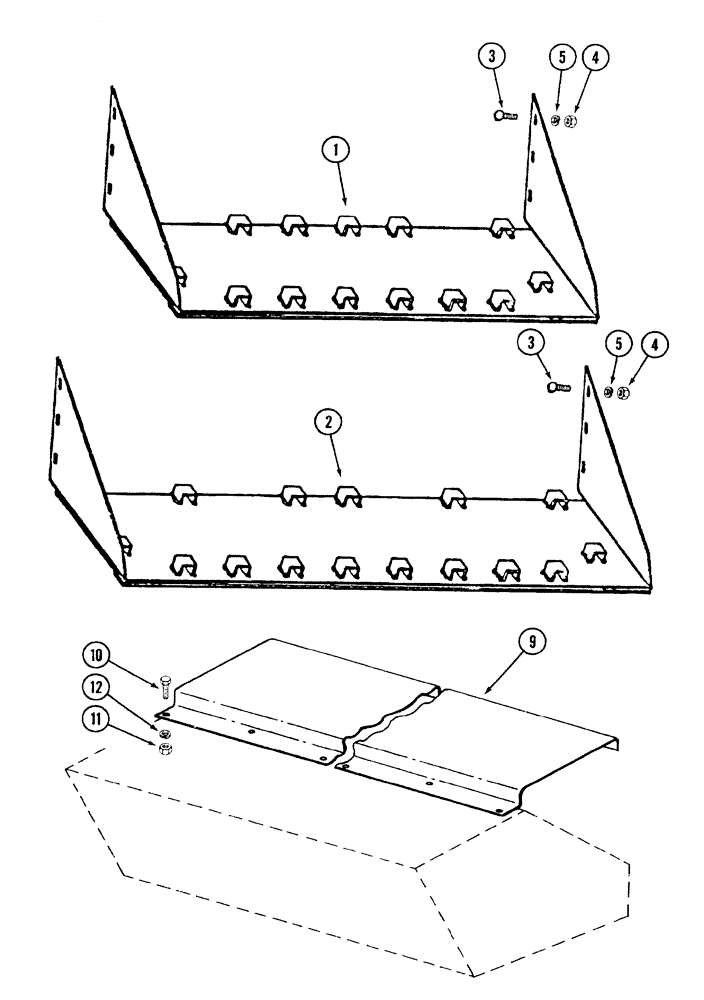

Запчасти Case IH 2255 (9-26) - TINE COVERS, FOR 60 INCH AND 72 INCH MANURE BUCKETS (09) - CHASSIS/ATTACHMENTS

851883C91

ATTACHMENT cover, tine, 60 inch manure bucket (Machinery Item), Includes Ref 1 and Ref. 3 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY, tine, 60 inch (Machinery Item)

1шт.

851899C91

ATTACHMENT cover, tine, 72 inch manure bucket (Machinery Item), Includes Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASEMBLY, tine, 72 inch (Machinery Item)

1шт.

3

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

6шт.

4

425-108

NUT,1/2" - 13, Gr 5

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

853650C91

ATTACHMENT spill guard, bucket, (Machinery Item), Includes Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

GUARD spill, bucket, (Machinery Item)

1шт.

10

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

self tapping, hex washer head, 3/8 NC x 7/8 inch, spill guard

9шт.

11

425-106

NUT,3/8"-16, Cl 5

Spill guard

9шт.

Washer and nut not used when mounting to an 84 inch heavy duty bucket

1шт.

12

492-11038

LOCK WASHER,3/8"

Spill guard

9шт.

Washer and nut not used when mounting to an 84 inch heavy duty bucket

1шт.
