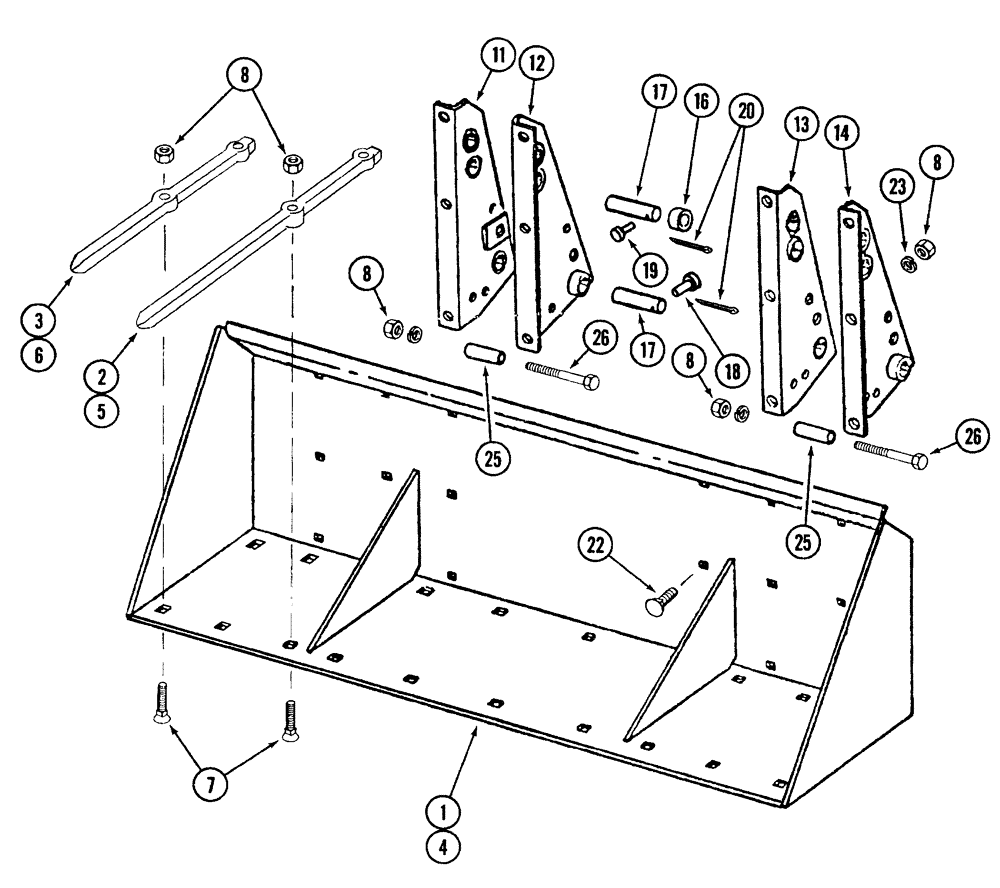

Запчасти Case IH 2255 (9-24) - MANURE BUCKETS, 60 INCH AND 72 INCH (09) - CHASSIS/ATTACHMENTS

851947C91

ATTACHMENT bucket, manure, 60 inch (Machinery Item), Includes Ref 1 - 3 and Ref. 7 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY, manure, 60 inch (Machinery Item) 1

1шт.

2

851425C1

TINE

inner, for 60 inch bucket

6шт.

3

851426C1

TINE

outer, for 60 inch bucket

2шт.

851948C92

ATTACHMENT bucket, manure, 72 inch (Machinery Item), Includes Ref. 4 - 26

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY, manure, 72 inch (Machinery Item) 1

1шт.

5

851817C1

TINE

inner, for 72 inch bucket

8шт.

6

851818C1

TINE

outer, for 72 inch bucket

2шт.

7

419-3840

CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT plow, 1/2 NC x 2-1/2 inch

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

1шт.

11

851926C2

SUPPORT

bucket hinge right outer

1шт.

12

851925C2

SUPPORT

bucket hinge right inner

1шт.

13

851483C1

SUPPORT

bucket hinge left inner

1шт.

14

851484C1

SUPPORT

bucket hinge left outer

1шт.

16

162510C1

SPACER,1 3/8" Tube x 7/8"

1-1/8 ID x 7/8 inch long

4шт.

17

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

18

439-5530

HEADED PIN,5/16" x 1 7/8"

5/16 x 1-7/8 inch

2шт.

19

439-5532

HEADED PIN,5/16" x 2"

headed, 5/16 x 2 inch

4шт.

20

432-816

COTTER PIN,1/8" x 1"

4шт.

22

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

12шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

25

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

35/64 ID x 4-11/16 inch (If Equipped)

2шт.

26

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

BOLT hex, 1/2 NC x 6 inch

2шт.
