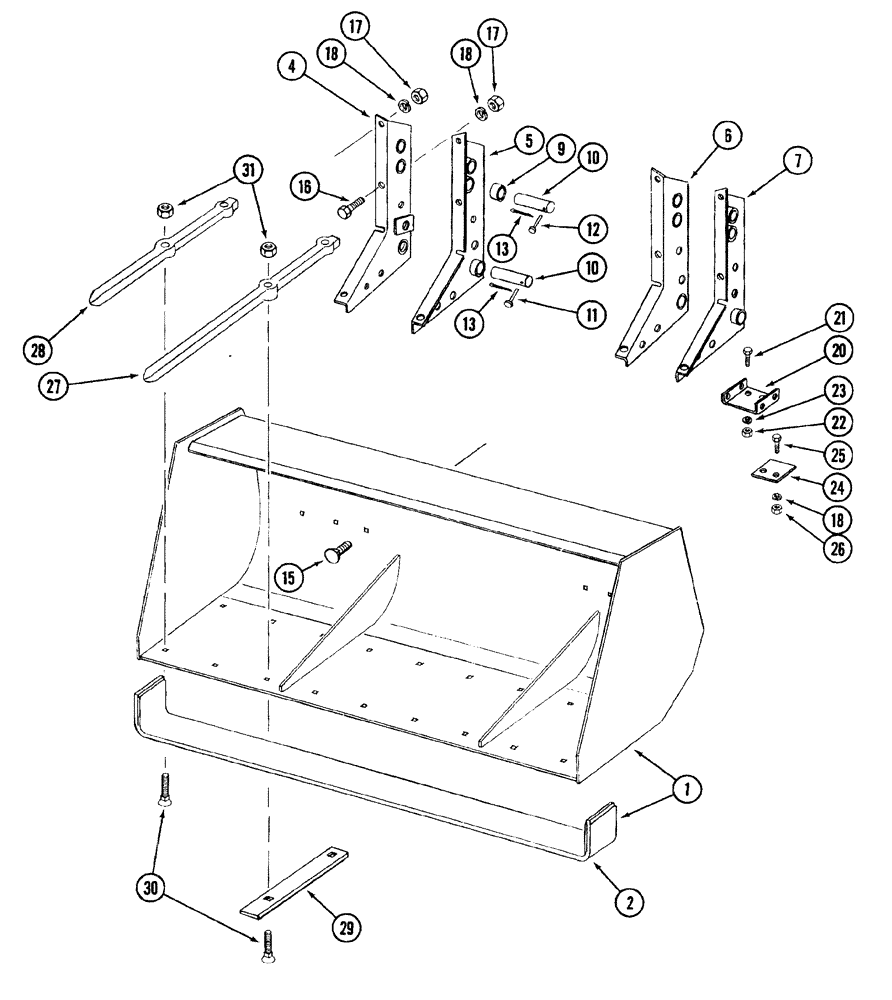

Запчасти Case IH 2255 (9-22) - GENERAL PURPOSE BUCKET, 72 INCH (09) - CHASSIS/ATTACHMENTS

852982C92

ATTACHMENT bucket, general purpose, 72 inch (Machinery Item), Includes Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY, general purpose, 72 inch (Machinery Item) 1, Includes Ref. 2

1шт.

2

851358C1

BLADE

EDGE cutting, 72 inch

1шт.

4

851919C2

SUPPORT

bucket hinge right outer

1шт.

5

851918C2

SUPPORT

bucket hinge right inner

1шт.

6

851476C1

SUPPORT

bucket hinge left inner

1шт.

7

851477C1

SUPPORT

bucket hinge left outer

1шт.

9

162510C1

SPACER,1 3/8" Tube x 7/8"

1-1/8 ID x 7/8 inch long

4шт.

10

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

11

439-5530

HEADED PIN,5/16" x 1 7/8"

5/16 x 1-7/8 inch

2шт.

12

439-5532

HEADED PIN,5/16" x 2"

headed, 5/16 x 2 inch

4шт.

13

432-816

COTTER PIN,1/8" x 1"

4шт.

15

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

4шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

17

425-108

NUT,1/2" - 13, Gr 5

12шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

20

851922C1

CHANNEL

bucket stop

2шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

22

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

8шт.

23

492-11038

LOCK WASHER,3/8"

8шт.

24

851842C1

BAR

cylinder stop

2шт.

25

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

26

429-108

NUT,1/2"-13, G8

hex, 1/2 inch NC, grade 8

4шт.

81006C91

SET tine, general purpose bucket, 72 inch (Machinery Item), Includes Ref. 27 - 31

1шт.

27

851817C1

TINE

inner

8шт.

28

851818C1

TINE

outer

2шт.

29

91331C1

BAR

wear bucket, tines

6шт.

30

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

1/2 NC x 2-1/2 inch, tines

20шт.

31

425-108

NUT,1/2" - 13, Gr 5

Tines

20шт.
