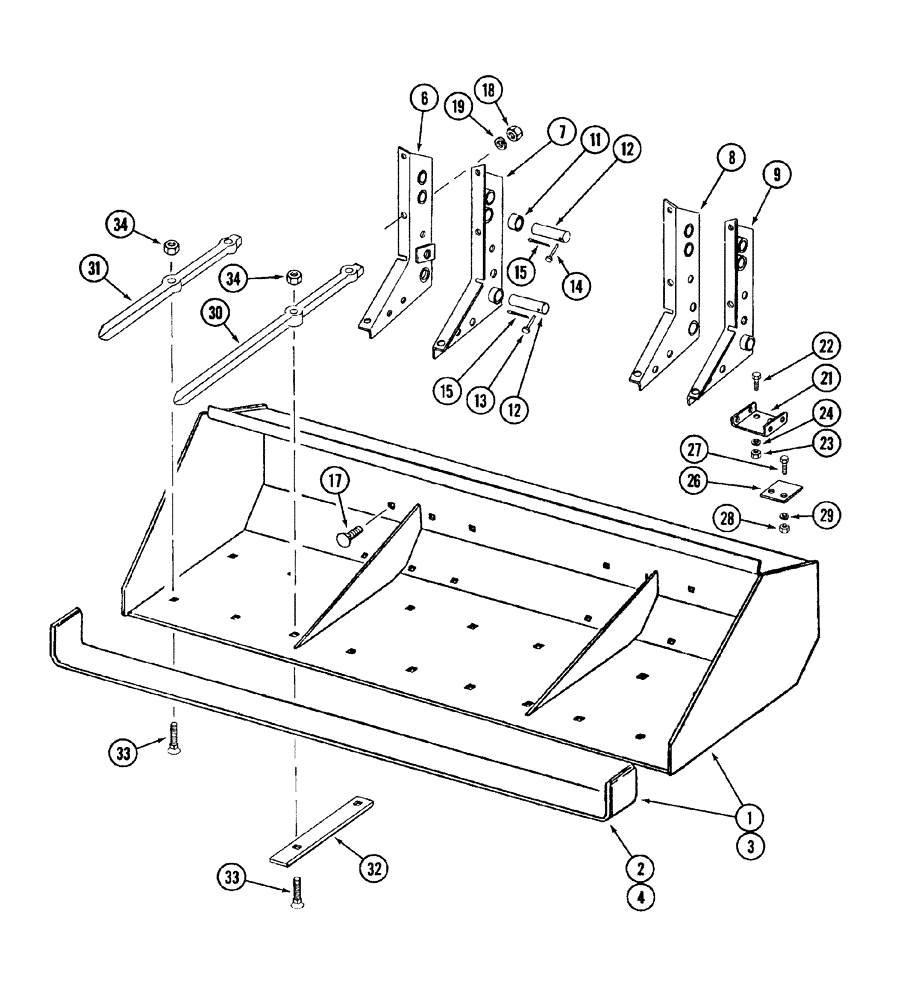

Запчасти Case IH 2255 (9-18) - LIGHT DUTY MATERIAL BUCKETS, 65 INCH AND 84 INCH (09) - CHASSIS/ATTACHMENTS

851945C93

ATTACHMENT bucket , material 65 inch (Machinery Item), Includes Ref. 1 - 2 and Ref. 6 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY, material, 65 inch (Machinery Item), Includes Ref. 2

1шт.

2

851917C1

BLADE

EDGE cutting, 65 inch

1шт.

851946C93

ATTACHMENT bucket, material, 84 inch (Machinery Item), Includes Ref. 3 - 29

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY, material, 84 inch (Machinery Item), Includes Ref. 4

1шт.

4

851806C1

BLADE

EDGE cutting, 84 inch

1шт.

6

851919C2

SUPPORT

bucket hinge right outer

1шт.

7

851918C2

SUPPORT

bucket hinge right inner

1шт.

8

851476C1

SUPPORT

bucket hinge left inner

1шт.

9

851477C1

SUPPORT

bucket hinge right inner

1шт.

11

162510C1

SPACER,1 3/8" Tube x 7/8"

1-1/8 ID x 7/8 inch long

4шт.

12

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

13

439-5530

HEADED PIN,5/16" x 1 7/8"

5/16 x 1-7/8 inch

2шт.

14

439-5532

HEADED PIN,5/16" x 2"

5/16 x 2 inch

4шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

17

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

12шт.

18

425-108

NUT,1/2" - 13, Gr 5

12шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

21

851922C1

CHANNEL

bucket stop

2шт.

22

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

23

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

8шт.

24

492-11038

LOCK WASHER,3/8"

8шт.

26

851842C1

BAR

cylinder stop

2шт.

27

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

28

429-108

NUT,1/2"-13, G8

hex, 1/2 inch NC, grade 8

4шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

852847C91

SET tine, material bucket, 65 inch (Machinery Item), Includes Ref. 30 - 34

1шт.

30

851817C1

TINE

inner, for 65 inch bucket

8шт.

31

851818C1

TINE

outer, for 65 inch bucket

2шт.

32

851807C2

BAR

wear bucket (If Equipped), tines for 65 inch bucket

6шт.

33

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

1/2 NC x 2-1/2 inch, tines for 65 inch bucket

20шт.

34

425-108

NUT,1/2" - 13, Gr 5

Tines for 65 inch bucket

16шт.

852925C91

SET tine, material bucket, 84 inch, Includes Ref. 30 - 34

1шт.

30

851817C1

TINE

inner, for 84 inch bucket

8шт.

31

851818C1

TINE

outer, for 84 inch bucket

2шт.

32

851807C2

BAR

wear bucket (If Equipped), tines for 84 inch bucket

6шт.

33

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

1/2 inch NC x 2-1/2 inch, tines for 84 inch bucket

20шт.

34

425-108

NUT,1/2" - 13, Gr 5

Tines for 84 inch bucket

20шт.
