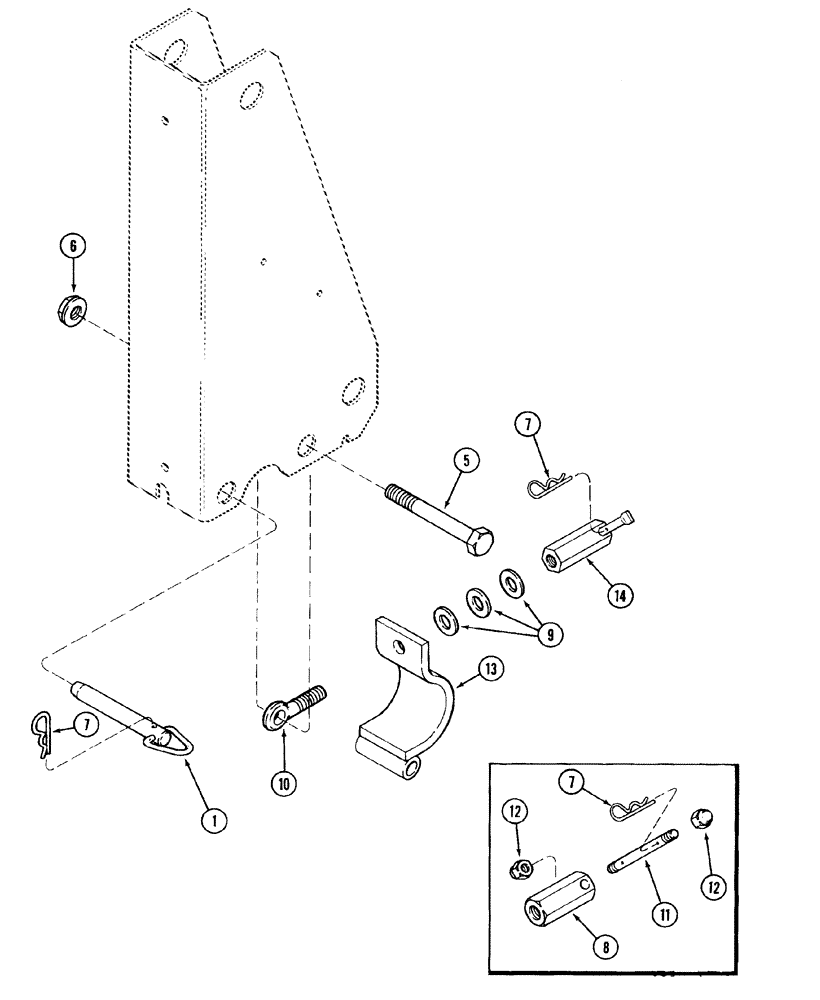

Запчасти Case IH 2255 (9-16) - QUICK ATTACH CLAMPING ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

1973017C1

PIN ASSY.

quick attach, 3/4 x 6-3/4 inch

1шт.

5

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4 NC x 6-1/2 inch

2шт.

6

231-41312

LOCK NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

2шт.

7

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

locking

4шт.

8

NSS

NOT SOLD SEPARAT

NUT special, (Order 1343215C1) 2

1шт.

9

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

10

1973005C1

EYEBOLT

BOLT, EYE CLAMP adjusting

2шт.

11

1973015C1

ROD

CLAMP nut adjusting

2шт.

12

234-10450

CROWN NUT,Crown, 1/2"-13

4шт.

13

1973019C2

CLAMP

retaining, (Replaces 1973019C1)

2шт.

14

1343215C1

SPECIAL NUT

special

2шт.
