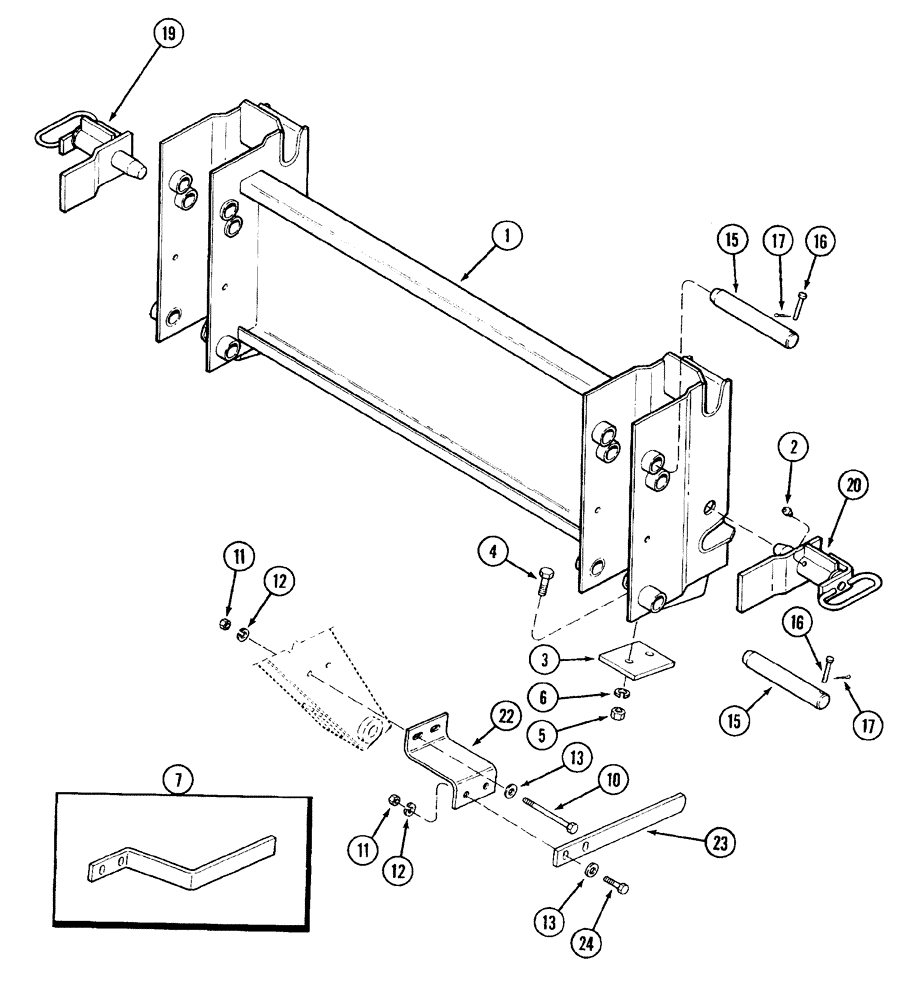

Запчасти Case IH 2255 (9-14) - 1978710C1 QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

1978710C1

FRAME

quick attach adapter

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

3

852849C1

BAR

cylinder stop

2шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

852848C1

ARM

quick lock pin actuating

2шт.

10

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

4шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.

12

492-11038

LOCK WASHER,3/8"

8шт.

13

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

8шт.

15

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

16

439-5532

HEADED PIN,5/16" x 2"

headed, 5/16 x 2 inch

4шт.

17

432-816

COTTER PIN,1/8" x 1"

4шт.

19

851138C91

PIN

quick lock left

1шт.

20

851139C91

PIN

quick lock right

1шт.

22

1329616C1

BRACKET

trip bar

2шт.

23

1329617C1

BAR

quick attach adapter

2шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.
