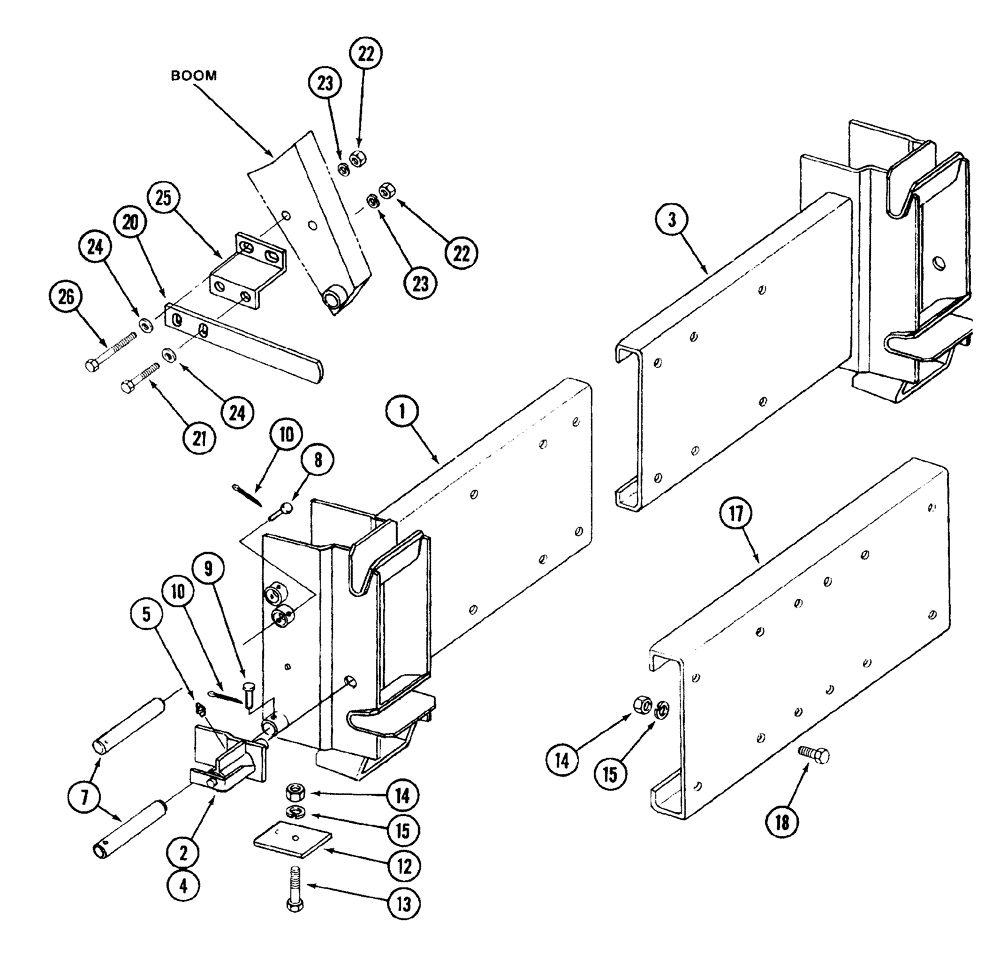

Запчасти Case IH 2255 (9-12) - 853495C1 QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

853495C1

FRAME

ASSEMBLY, quick attach adapter right, (If Equipped), Includes Ref. 2

1шт.

2

851139C91

PIN

quick lock right

1шт.

3

853494C1

FRAME

ASSEMBLY, quick attach adapterleft, (If Equipped), Includes Ref. 4

1шт.

4

851138C91

PIN

quick lock left

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

7

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

8

439-5532

HEADED PIN,5/16" x 2"

headed, 5/16 x 2 inch

2шт.

9

439-5530

HEADED PIN,5/16" x 1 7/8"

5/16 x 1-7/8 inch

2шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

12

852849C1

BAR

cylinder stop

2шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

14

425-108

NUT,1/2" - 13, Gr 5

12шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

17

853497C1

BEAM

center, (If Equipped)

1шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

20

1329617C1

BAR

quick attach adapter lock pin

2шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

22

425-106

NUT,3/8"-16, Cl 5

8шт.

23

492-11038

LOCK WASHER,3/8"

8шт.

24

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

8шт.

25

1329616C1

BRACKET

trip bar

2шт.

26

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

4шт.
