(9-10) - FRONT AXLE STOPS, SIDE DRIVE MFD TRACTORS, 585, 685, 885, 584, 684, 784 AND 884

Запчасти Case IH 2255 (9-10) - FRONT AXLE STOPS, SIDE DRIVE MFD TRACTORS, 585, 685, 885, 584, 684, 784 AND 884 (09) - CHASSIS/ATTACHMENTS

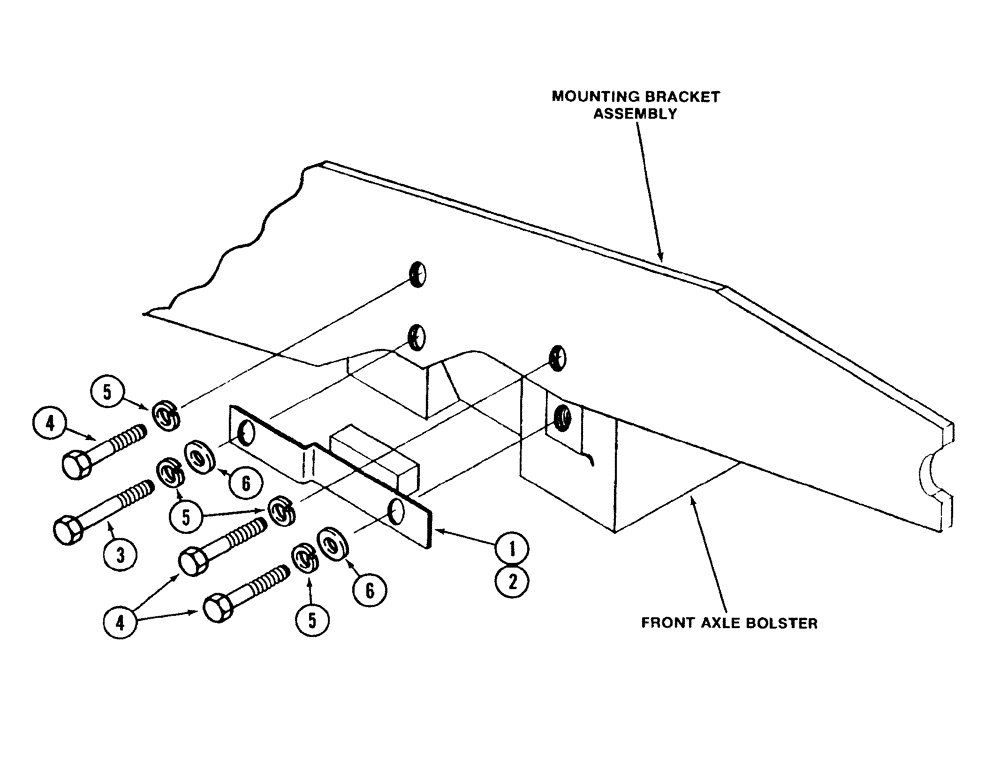

Схема запчастей Case IH 2255 - (9-10) - FRONT AXLE STOPS, SIDE DRIVE MFD TRACTORS, 585, 685, 885, 584, 684, 784 AND 884 (09) - CHASSIS/ATTACHMENTS
6
2
1
5
3
5
6
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1329610C1

STOP

axle, right, (If Equipped)

1шт.

2

1329609C1

STOP

axle, left, (If Equipped)

1шт.

3

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

4

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

6шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

6

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

4шт.
