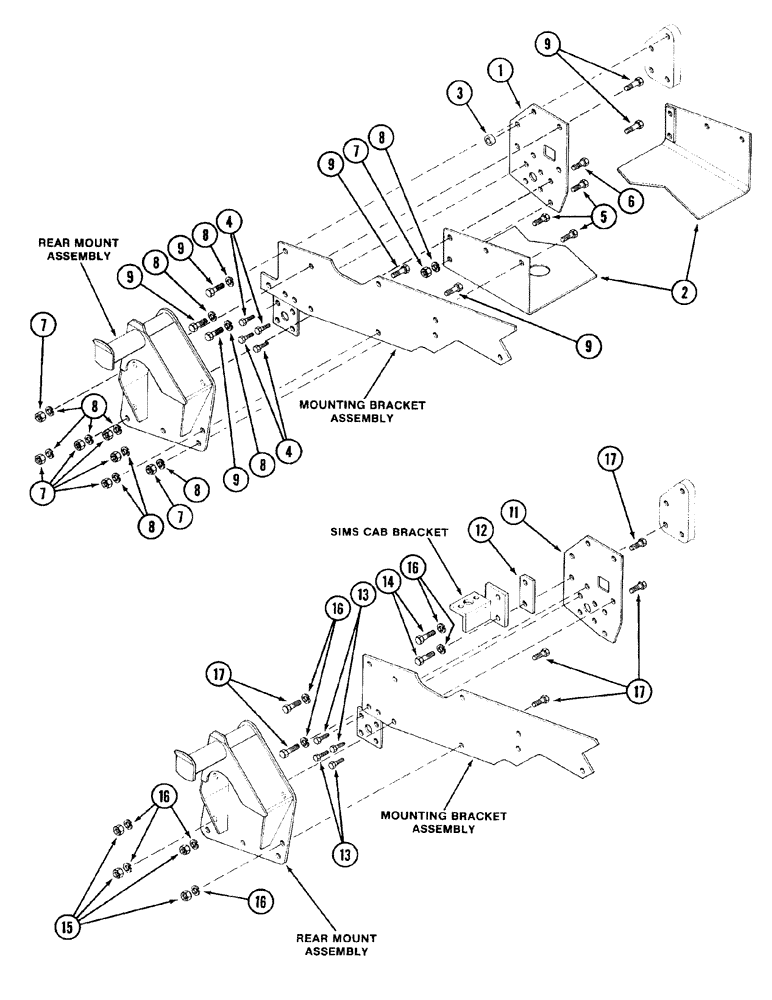

Запчасти Case IH 2255 (9-08) - MOUNTING BRACKET SUPPORTS, SIDE OR CENTER DRIVE MFD TRACTORS, 685, 885, 684, 784 AND 884 (09) - CHASSIS/ATTACHMENTS

1

1329618C1

PLATE

support bracket

2шт.

2

1329622C1

CHANNEL

support

1шт.

3

623907R1

SPACER,1" Pipe x 5/8"

pipe, 1-3/64 ID x 5/8 inch

2шт.

Use on tractors listed in heading and equipped with Case cab.

1шт.

3

591730R1

SPACER,1" Pipe x13"

pipe

2шт.

Use on all applicable tractors with Case cab except those listed in heading.

1шт.

4

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

Required on side drive MFD tractors only.

1шт.

5

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

hex, 3/4 NC x 1-3/4 inch, grade 8

6шт.

6

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

BOLT hex, 3/4 NC x 2-1/4 inch, grade 8

2шт.

7

429-1012

NUT,3/4"-10, G8

hex, NC

16шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

22шт.

9

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

14шт.

11

1329618C1

PLATE

support bracket, tractors with sims cab

2шт.

12

1329621C1

SPACER

cab, tractors with sims

2шт.

13

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Tractors with Sims cab

4шт.

Required on side drive MFD tractors only.

1шт.

14

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

BOLT hex, 3/4 NC x 2-1/4 inch, grade 8, tractors with sims cab

4шт.

15

429-1012

NUT,3/4"-10, G8

hex, NC, Tractors with Sims cab

8шт.

16

492-11075

LOCK WASHER,3/4"

tractors with Sims cab 3/4"

12шт.

17

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Tractors with Sims cab

12шт.
