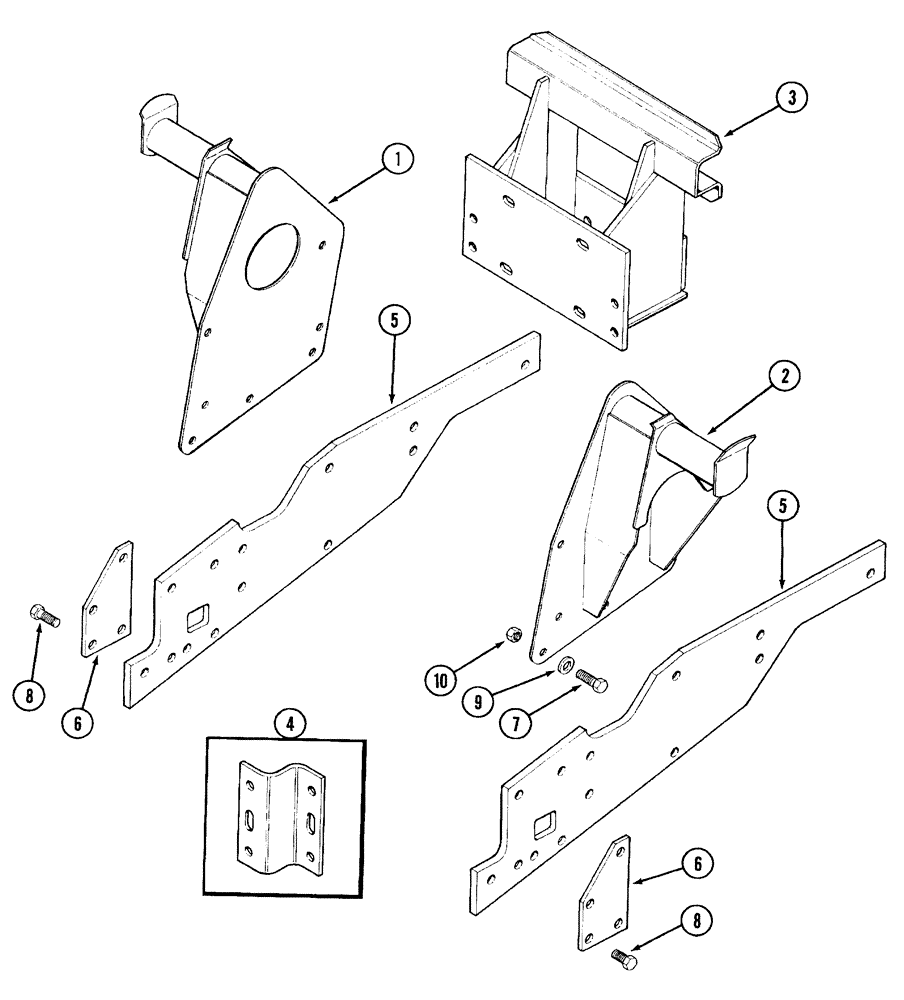

Запчасти Case IH 2255 (9-06) - 1329500C1 MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

1329500C1

BRACKET

rear mount, left

1шт.

2

1329501C2

BRACKET

rear mount, right

1шт.

3

1343388C4

BRACKET

front mounting

1шт.

4

1343387C1

BRACKET

spacer

2шт.

Use on CASE-IH 85 and 95 series tractors equipped with row crop bolster and the following tractors equipped w/2 wheel drive and ROPS: 585 and 595UT and RC, 685, 885, 695, 895, 995 RC.

1шт.

5

1343398C2

PLATE

loader mounting

2шт.

6

1329663C1

SPACER

plate

2шт.

7

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

8

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

9

495-11081

WASHER,3/4", SAE

1шт.

10

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

1шт.
