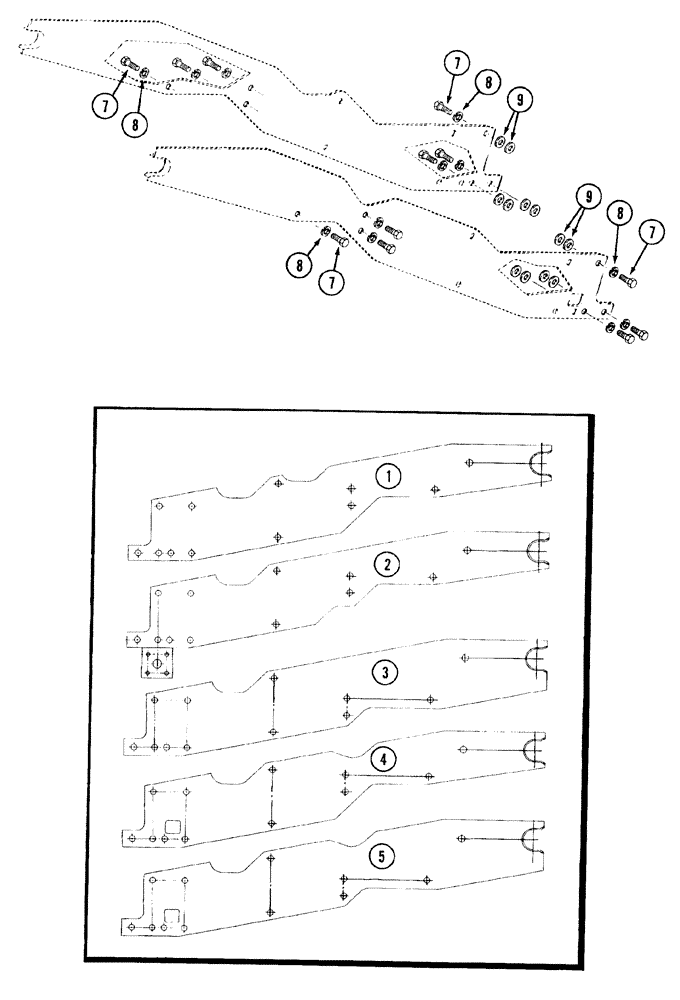

Запчасти Case IH 2255 (9-04) - 1329512C1 MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

1329512C1

RAIL ASSY.

BRACKET mounting, right, (If Equipped)

1шт.

For 2 wheel drive tractors 585, 685, 885, 584, 684, 784, 884, Hydro 84, 574 and 674. Also for center shaft MFD tractors 485, 585, 685, and 885.

1шт.

2

1329600C1

RAIL ASSY.

BRACKET mounting, right, (If Equipped)

1шт.

For side drive MFD tractors 585, 685, 885, 584, 684, 784, and 884.

1шт.

3

1329608C1

RAIL ASSY.

BRACKET mounting, right, (If Equipped)

1шт.

For utility tractors with 3 bolt front bolster 684, 784, 884, and Hydro 84.

1шт.

4

1329511C1

RAIL ASSY.

BRACKET mounting, left, (If Equipped)

1шт.

For 2 wheel drive tractors 585, 685, 885, 584, 684, 784, 884, Hydro 84, 574 and 674. Also for center shaft MFD tractors 485, 585, 685, and 885, also for side drive MFD tractors 585, 685, 885, 584, 684, 784, and 884.

1шт.

5

1329607C1

PLATE ASSY.

BRACKET mounting, left, (If Equipped)

1шт.

For utility tractors with 3 bolt front bolster 684, 784, 884, and Hydro 84.

1шт.

7

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

12шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

9

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

12шт.
