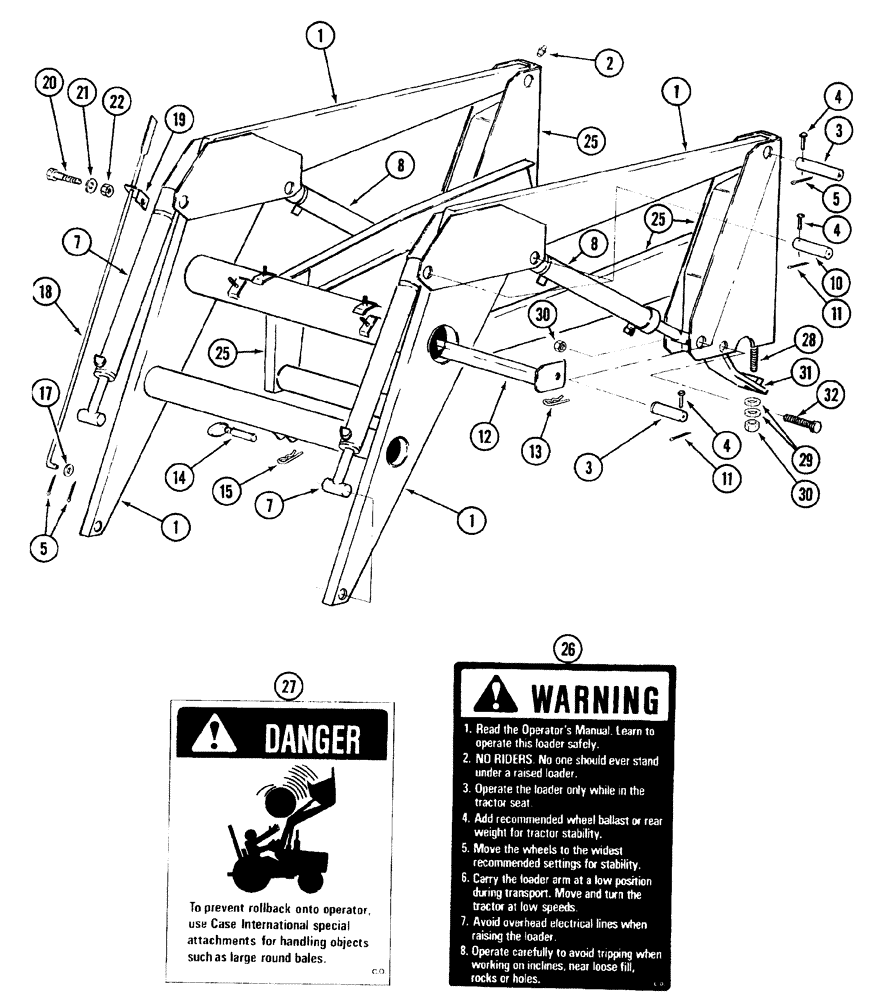

Запчасти Case IH 2255 (9-02) - BOOM AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

1329516C1

BOOM

loader

1шт.

2

219-14

LUBE NIPPLE,1/4" NPTF

Straight

4шт.

3

1329594C1

PIN,28.57mm OD x 195mm L

pivot

4шт.

4

439-5532

HEADED PIN,5/16" x 2"

headed, 5/16 x 2 inch

8шт.

5

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY, bucket, See Fig. 8-4

2шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY, boom, See Fig. 8-6

2шт.

10

851444C1

PIN

pivot

4шт.

11

432-816

COTTER PIN,1/8" x 1"

4шт.

12

1329564C1

ASSEMBLY

LEG parking

1шт.

13

1978738C1

HAIR PIN COTTER

1шт.

14

113225C1

PIN

parking leg cock

1шт.

15

1980543C1

HAIR PIN COTTER

hair, 5/32 inch diameter

1шт.

17

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

18

851826C1

ROD

indicator bucket

1шт.

19

851704C1

ANGLE

indicator support

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

25

1329626C1

SUPPORT

boom, (Prior to P.I.N. 229761)

1шт.

25

1985437C1

FRAME ASSY

SUPPORT boom, (P.I.N. 229761 and after), Includes Ref. 26 and 27

1шт.

26

1329623C2

PRODUCT GRAPHIC

DECAL warning, read the Operator's Manual

1шт.

27

1334171C2

PRODUCT GRAPHIC

DECAL danger, rollback prevention

1шт.

28

1329547C1

HARDWARE

BOLT T 3/4 inch NC, Grade 8

2шт.

29

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

30

231-41312

LOCK NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

4шт.

For quick attach special T-bar nut use 1343215C1

1шт.

31

1329546C2

HINGE

boom support, (If Equipped)

2шт.

32

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4 NC x 6-1/2 inch

2шт.
