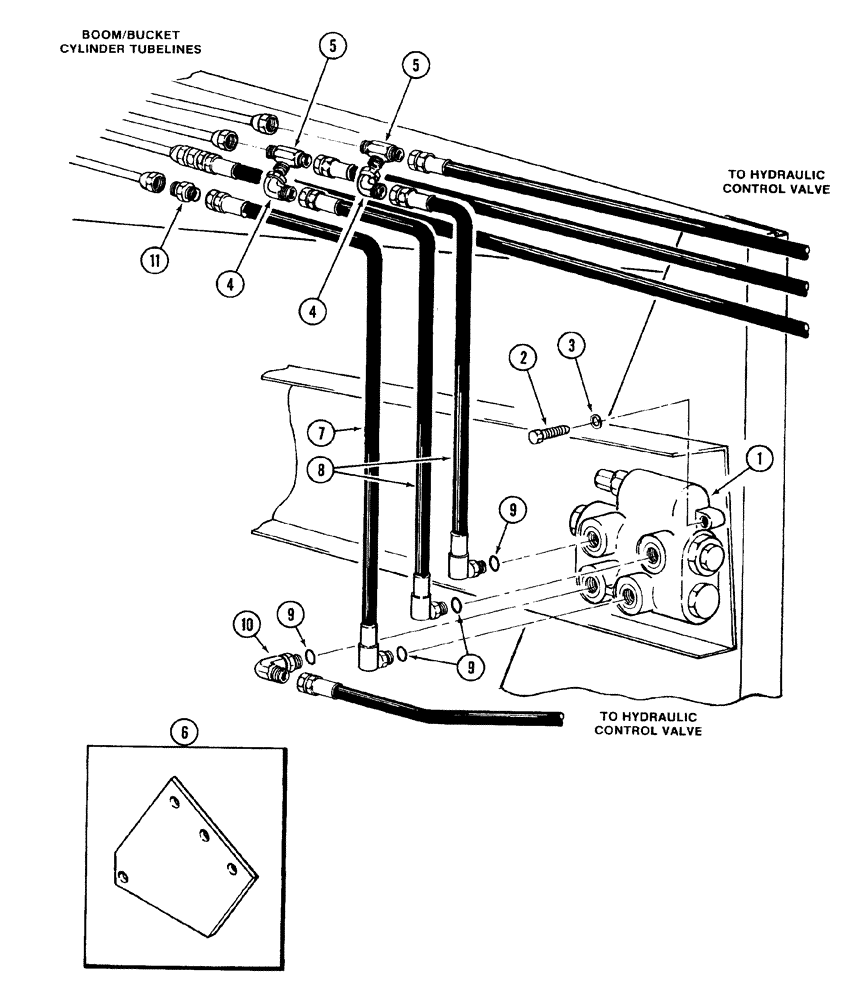

Запчасти Case IH 2255 (8-46) - BUCKET SELF LEVELING VALVE AND HOSES (08) - HYDRAULICS

81464C91

VALVE ATTACHMENT, bucket self leveling, (Machinery Item), Includes Ref. 1 - 10

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY, bucket self leveling, See Fig. 8-48

1шт.

2

276-14832

SELF-TAP SCREW,Hex Hd, 5/16" x 2"

2шт.

3

492-11031

LOCK WASHER,5/16"

2шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

5

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

2шт.

6

1540362C1

PLATE

valve mounting

1шт.

7

1329581C2

HOSE ASSY.

34 inch (864 mm) long

1шт.

8

1329582C2

HOSE ASSY.

28 inch (711 mm) long

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

11

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

1шт.
