Запчасти Case IH 2255 (8-44) - POWER BEYOND MANIFOLDS (08) - HYDRAULICS

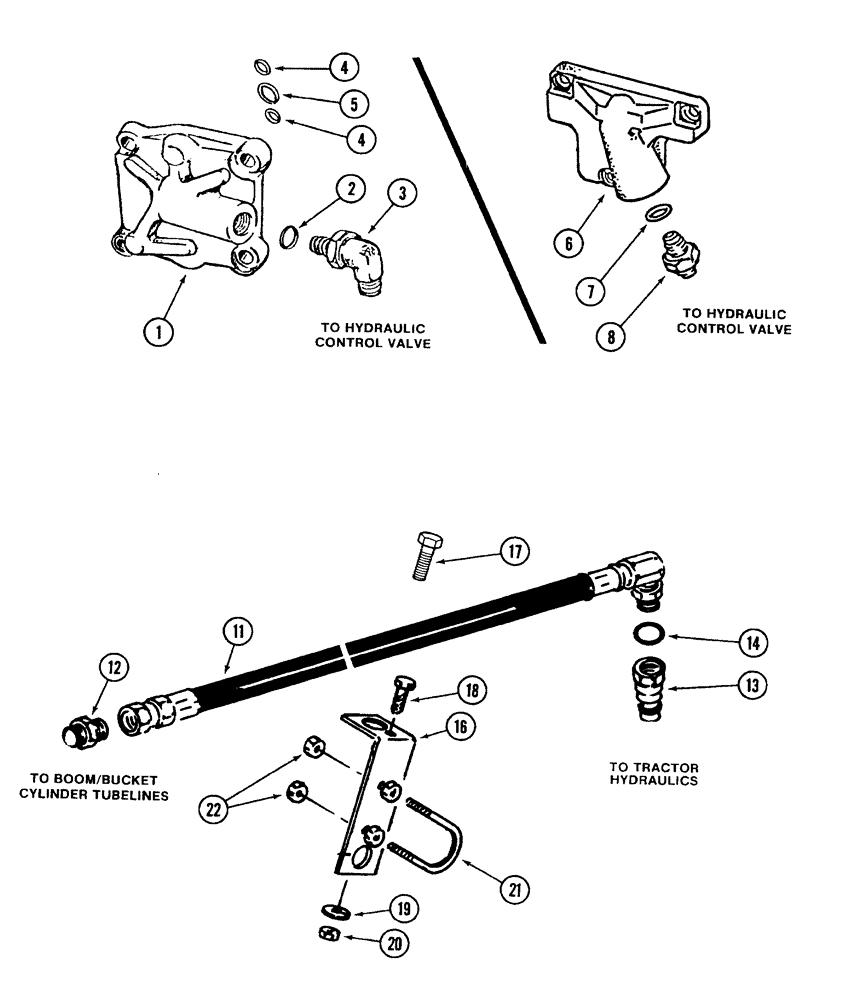

Схема запчастей Case IH 2255 - (8-44) - POWER BEYOND MANIFOLDS (08) - HYDRAULICS
18
22
2
5
4
7
14
16
6
12
19
8
1
4
17
11
20
3
13
21

Артикул

Название

Примечание

Количество

1

123082C1

COVER

MANIFOLD power beyond, (If Equipped)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

1шт.

4

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

5

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

6

470603R4

MANIFOLD

power beyond (If Equipped)

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

reducing

1шт.

11

1329577C3

HOSE ASSY.

162 inch (4115 mm) long, quick detach hoses

4шт.

12

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare, quick detach hoses

4шт.

13

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF, quick detach hoses

4шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Quick detach hoses

4шт.

16

90868C1

ANGLE

hose support, quick detach hoses

2шт.

17

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Quick detach hoses

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Quick detach hoses

1шт.

19

492-11031

LOCK WASHER,5/16"

Quick detach hoses

1шт.

20

425-105

NUT,5/16"-18, G5

Quick detach hoses

1шт.

21

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U, 5/16 inch NF, quick detach hoses

2шт.

22

425-115

NUT,5/16"-24, G5

Quick detach hoses

8шт.

Выбрано товаров: 19
