Запчасти Case IH 2255 (8-42) - SECTION ASSEMBLY (08) - HYDRAULICS

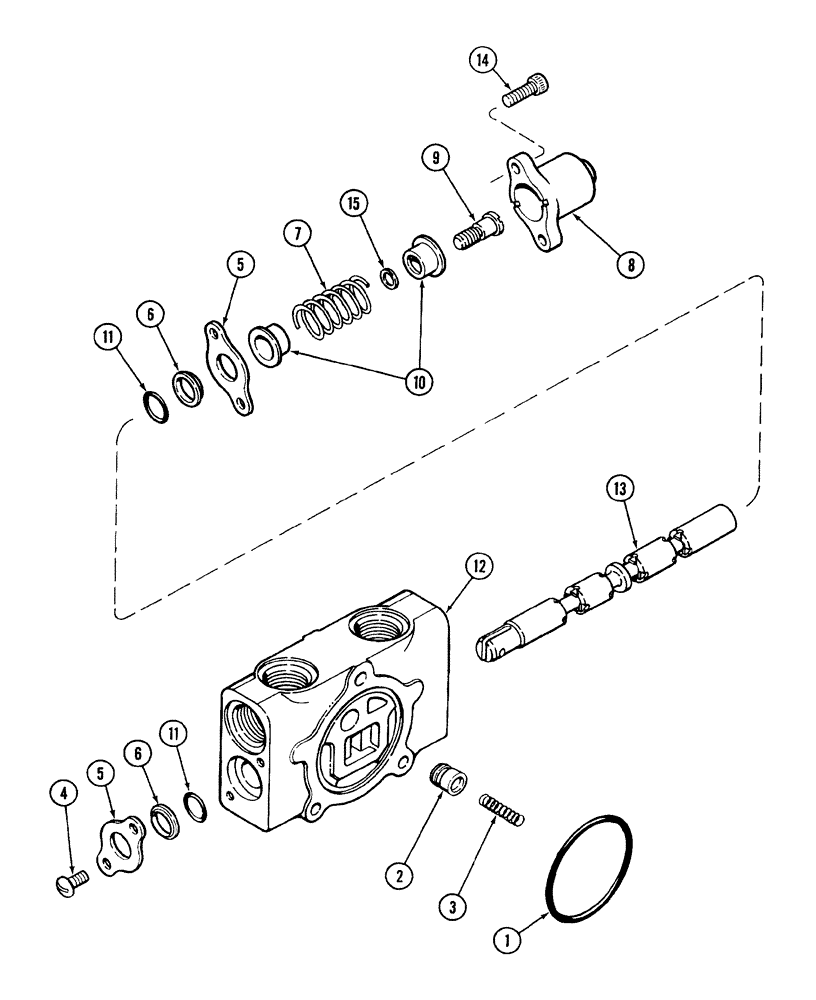

Схема запчастей Case IH 2255 - (8-42) - SECTION ASSEMBLY (08) - HYDRAULICS
7
11
5
14
1
10
5
2
15
9
4
6
11
6
3
8
12
13

Артикул

Название

Примечание

Количество

123118A1

VALVE

ASSEMBLY, hydraulic control, Includes Ref. 1 - 15 and Section Assembly

1шт.

123120A1

SPOOL

SECTION ASSEMBLY, spool, Includes Ref. 1 - 15

1шт.

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

2

S111864

VALVE POPPET

1шт.

3

890615C1

SPRING

compression

1шт.

4

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

5

S111865

PLATE

seal

1шт.

6

S111870

OIL SCRAPER RING

seal

1шт.

7

1985092C1

SPRING

compression

1шт.

8

S111869

CAP

spool

1шт.

9

S111868

SCREW

SPOOL end

1шт.

10

S111866

SEAT

spring

2шт.

11

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

detent spool

2шт.

12

NSS

NOT SOLD SEPARAT

BODY spool section, (Order 123120A1) 1

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL valve, (Order 123120A1) 1

1шт.

14

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

2шт.

15

105089A1

SPACER

spring

1шт.

Выбрано товаров: 17
