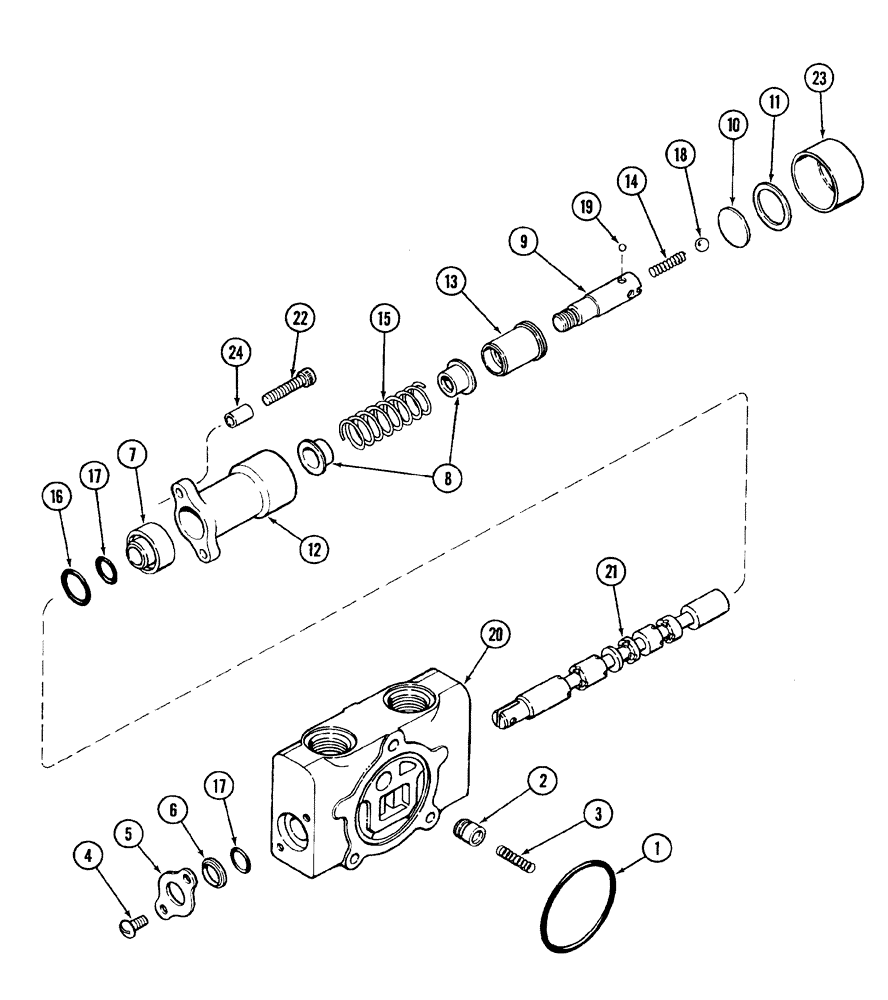

Запчасти Case IH 2255 (8-40) - SECTION ASSEMBLY (08) - HYDRAULICS

123118A1

VALVE

ASSEMBLY, hydraulic control, Includes Ref. 1 - 24 and Section Assembly

1шт.

123119A1

BOOM

SECTION ASSEMBLY, spool, Includes Ref. 1 - 24

1шт.

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

2

S111864

VALVE POPPET

1шт.

3

890615C1

SPRING

compression

1шт.

4

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

5

S111865

PLATE

seal

2шт.

6

S111870

OIL SCRAPER RING

seal

2шт.

7

1346860C1

SPACER

CAP spool

1шт.

8

S111866

SEAT

spring

2шт.

9

1985093C1

SPOOL

PIN detent

1шт.

10

1344719C1

PLATE

spacer

1шт.

11

1344715C1

RING

retaining

1шт.

12

1344724C1

CAP

spool detent

1шт.

13

105082A1

SLEEVE

detent

1шт.

14

1344718C1

SPRING

detent

1шт.

15

1344735C1

SPRING

compression

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

17

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

detent spool

2шт.

18

211-2210

BALL,5/16" Dia, Stainless

5/16 inch dia.

1шт.

19

211-1007

BALL,7/32" Dia

Gr 24, Chrome alloy steel

4шт.

20

NSS

NOT SOLD SEPARAT

BODY spool section, (Order 123119A1) 1

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL valve, (Order 123119A1) 1

1шт.

22

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

2шт.

23

1540123C1

COVER

end

1шт.

24

1346861C1

SPACER

bolt

2шт.
