Запчасти Case IH 2255 (8-38) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

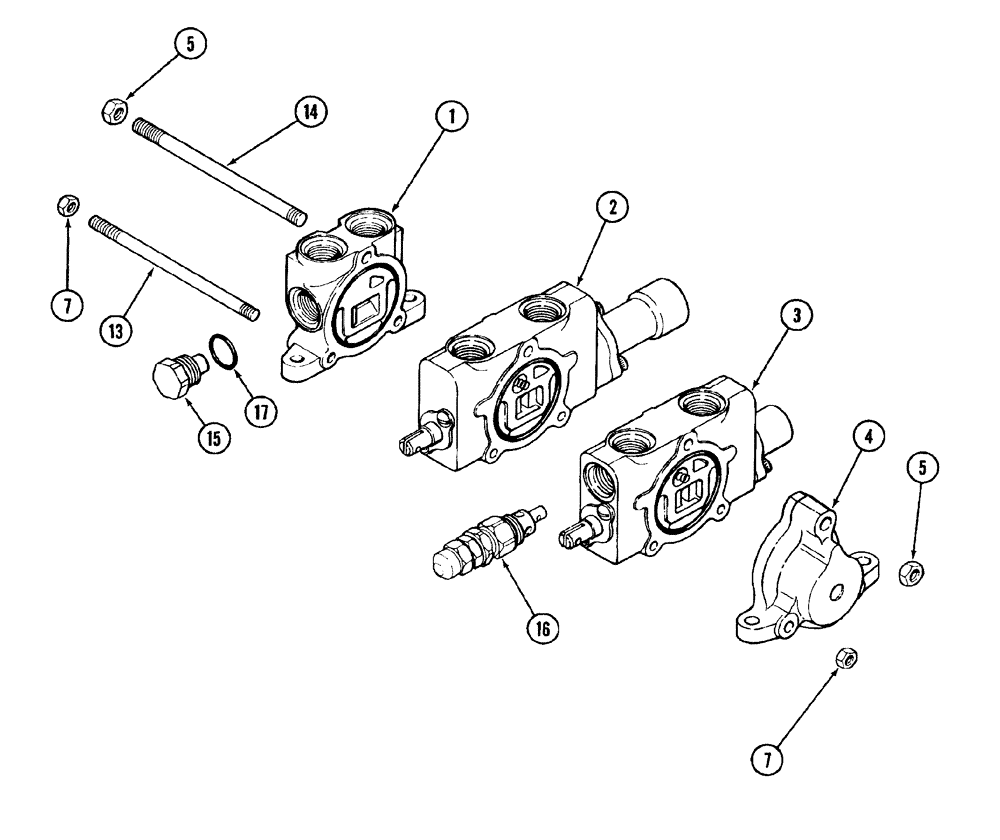

Схема запчастей Case IH 2255 - (8-38) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS
16
15
7
14
2
17
3
4
7
5
13
1
5

Артикул

Название

Примечание

Количество

123118A1

VALVE

ASSEMBLY, hydraulic control, (Part number stamped on valve), Includes Ref. 1 - 17

1шт.

1

105087A1

VALVE

SECTION inlet

1шт.

2

REF

INSTRUCTION

SECTION ASSEMBLY, spool, See Fig. 8-40

1шт.

3

REF

INSTRUCTION

SECTION ASSEMBLY, spool, See Fig. 8-42

1шт.

4

S234401

OUTLET

SECTION outlet

1шт.

5

329-116

NUT,3/8"-24, G8

2шт.

7

425-105

NUT,5/16"-18, G5

4шт.

13

1344725C1

TIE-ROD,5/16" - 18 x 6"

TIE ROD STUD, 5/16 x 6 inch

2шт.

14

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

STUD tie, 3/8 x 6-1/8 inch

1шт.

15

86512512

PLUG,7/8" - 14 ORB

1шт.

16

1985094C1

VALVE

relief

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
