Запчасти Case IH 2255 (8-36) - 1343404C1 SECTION ASSEMBLY (08) - HYDRAULICS

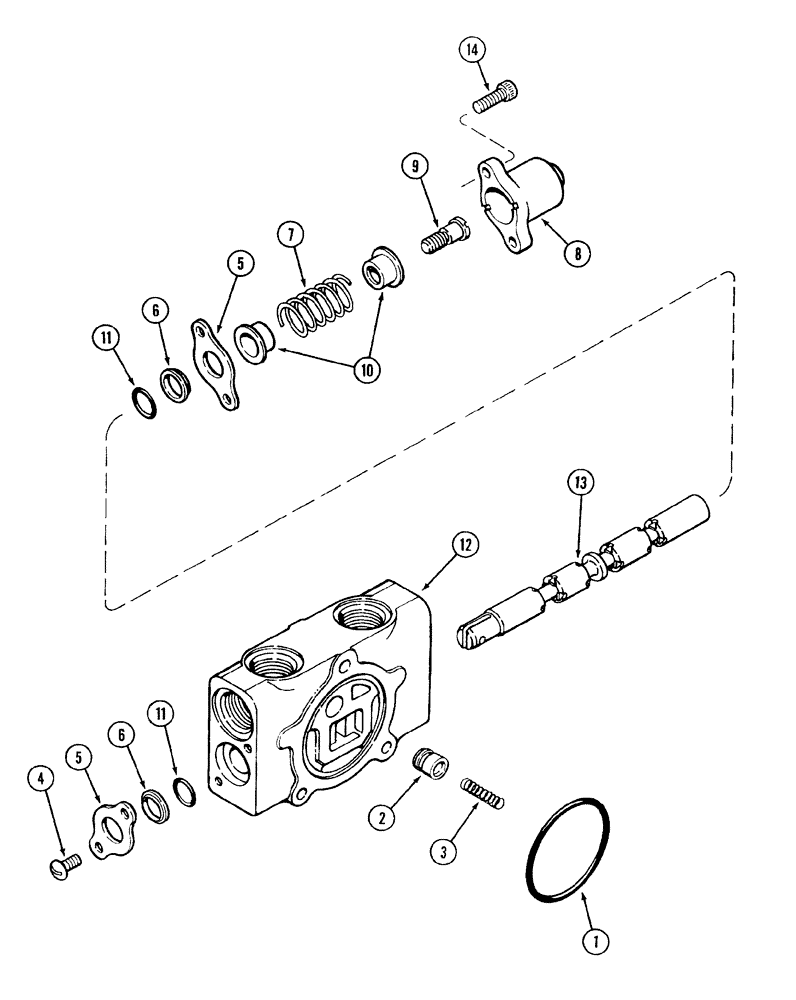

Схема запчастей Case IH 2255 - (8-36) - 1343404C1 SECTION ASSEMBLY (08) - HYDRAULICS
3
2
4
5
10
1
13
5
6
12
6
9
14
11
11
7
8

Артикул

Название

Примечание

Количество

1343404C1

VALVE

ASSEMBLY, hydraulic control (Order 123118A1), Includes Ref. 1 - 14 and Section Assembly

1шт.

1985096C1

VALVE BLOCK

SECTION ASSEMBLY, spool, (Order 123120A1), Includes Ref. 1 - 14

1шт.

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

2

S111864

VALVE POPPET

1шт.

3

890615C1

SPRING

compression

1шт.

4

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

5

S111865

PLATE

seal

1шт.

6

S111870

OIL SCRAPER RING

SEAL

1шт.

7

1985092C1

SPRING

compression

1шт.

8

S111869

CAP

spool

1шт.

9

S111868

SCREW

SPOOL end

1шт.

10

S111866

SEAT

spring

2шт.

11

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

detent spool

2шт.

12

NSS

NOT SOLD SEPARAT

BODY spool section, (Order 1985096C1)

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL valve, (Order 1985096C1)

1шт.

14

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

2шт.

Выбрано товаров: 16
