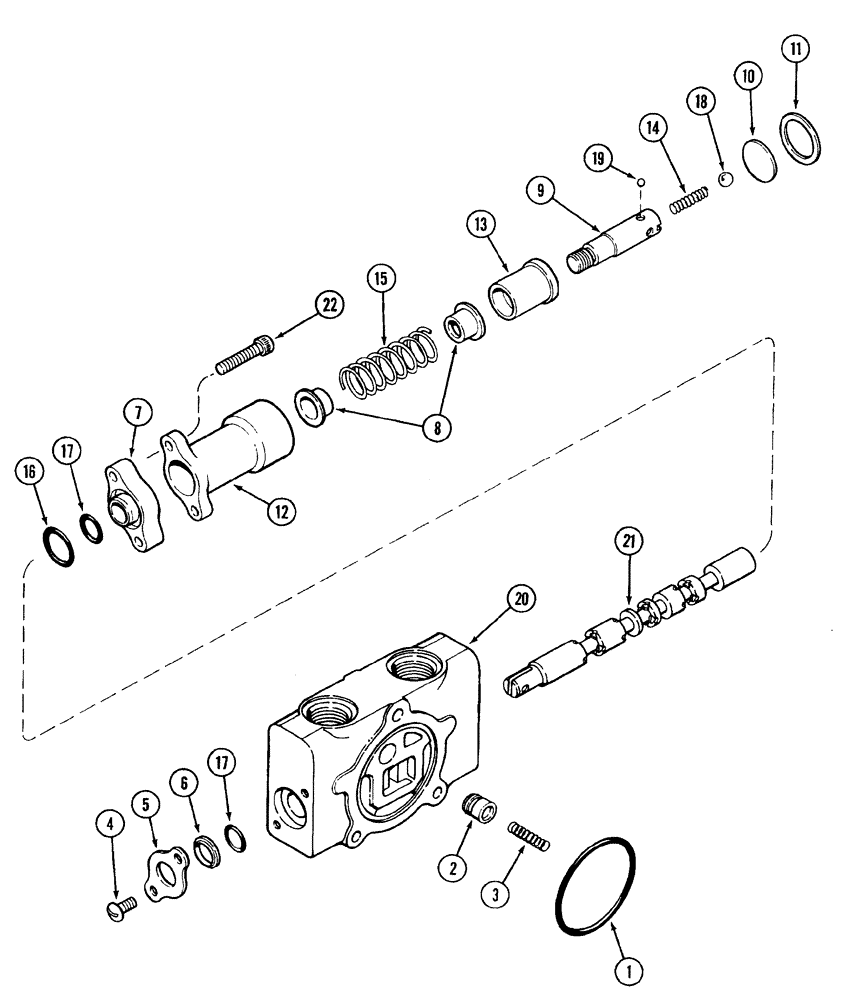

Запчасти Case IH 2255 (8-34) - 134340C1 SECTION ASSEMBLY (08) - HYDRAULICS

134340C1

BOTTOM

VALVE ASSEMBLY, hydraulic control, (Order 123118A1), Includes Ref. 1 - 22 and Section Assembly

1шт.

1985095C1

SPOOL

SECTION ASSEMBLY, spool, (Order 1346862C1), Includes Ref. 1 - 22

1шт.

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

2

S111864

VALVE POPPET

1шт.

3

890615C1

SPRING

compression

1шт.

4

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

5

S111865

PLATE

seal

2шт.

6

S111870

OIL SCRAPER RING

seal

2шт.

7

1344720C1

SPACER

CAP spool

1шт.

8

S111866

SEAT

spring

2шт.

9

1985093C1

SPOOL

PIN detent

1шт.

10

1344719C1

PLATE

spacer

1шт.

11

1344715C1

RING

retaining

1шт.

12

1344724C1

CAP

spool detent

1шт.

13

105082A1

SLEEVE

detent

1шт.

14

1344718C1

SPRING

detent

1шт.

15

1344735C1

SPRING

compression

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

17

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

detent spool

2шт.

18

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

19

23204R1

BALL,7/32" Dia, Stainless

4шт.

20

NSS

NOT SOLD SEPARAT

BODY spool section, (Order 1085095C1) 1

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL valve, (Order 1985095C1) 1

1шт.

22

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

2шт.
