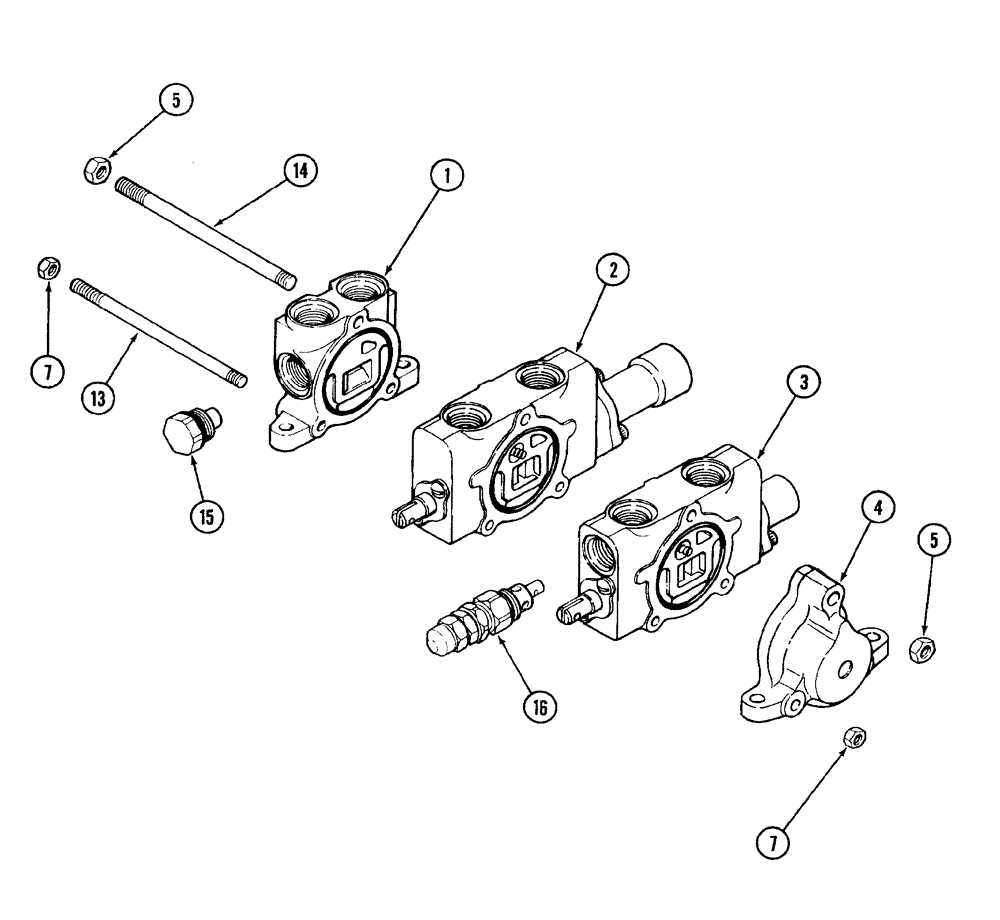

Запчасти Case IH 2255 (8-32) - 1343404C1 HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1343404C1

VALVE

ASSEMBLY, hydraulic control, (Part number stamped on valve) (Order 123118A1), Includes Ref. 1 - 16

1шт.

1

1344741C1

COVER

SECTION inlet

1шт.

2

REF

INSTRUCTION

SECTION ASSEMBLY, spool, See Fig. 8-34

1шт.

3

REF

INSTRUCTION

SECTION ASSEMBLY, spool, See Fig. 8-36

1шт.

4

S234401

OUTLET

SECTION

1шт.

5

329-116

NUT,3/8"-24, G8

2шт.

7

425-105

NUT,5/16"-18, G5

4шт.

13

1344725C1

TIE-ROD,5/16" - 18 x 6"

TIE ROD 5/16 x 6 inch

2шт.

14

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

STUD tie, 3/8 x 6-1/8 inch

1шт.

15

1344731C1

PLUG

shut off

1шт.

16

1985094C1

VALVE

relief

1шт.
