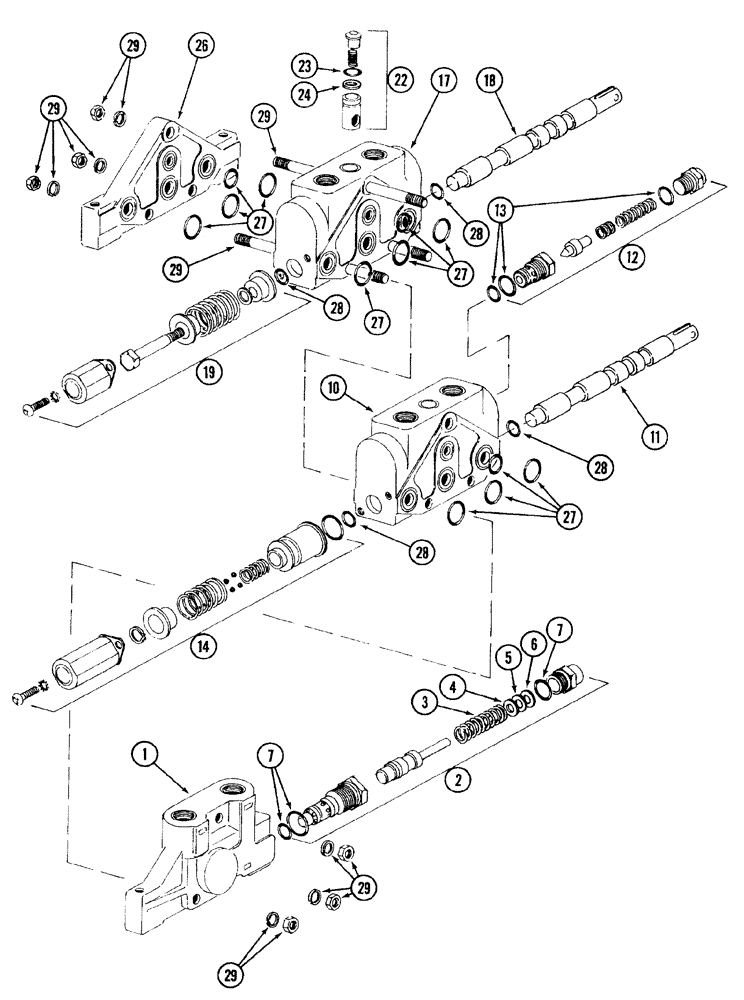

Запчасти Case IH 2255 (8-30) - 1329540C91 HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1329540C91

VALVE

Hydraulic Control, Assy, Incl 1 - 26

1шт.

1

1329630C1

COVER

Inlet Assy, Incl 2 - 7

1шт.

2

1329637C1

VALVE

Main Relief, Assy

1шт.

3

1329638C1

SPRING

Relief Valve

1шт.

4

1329639C1

SPACER

Spring

1шт.

5

1329640C1

SHIM

0.020" Thk

1шт.

6

1329641C1

SHIM

0.003" Thk

1шт.

7

1329645C1

O-RING KIT

Main Relief Valve

1шт.

10

1329628C1

SPOOL

Assy, 4 - Position, Incl 11

1шт.

11

NSS

NOT SOLD SEPARAT

Spool Boom Control, Incl in Vavle Assy

1шт.

Order P/N 1329540C91

1шт.

12

1329636C1

VALVE

Assy, Relief Cylinder Pod, Incl 13

1шт.

13

1329644C1

O-RING KIT

Cylinder Pod Relief Valve

1шт.

14

1329633C1

KIT

Repair Float Action

1шт.

17

1329629C1

SPOOL

Assy, 3 - Position, Incl 18

1шт.

18

NSS

NOT SOLD SEPARAT

Spool Bucket Control, Incl in Valve Assy

1шт.

Order P/N 1329540C91

1шт.

19

1329634C1

KIT

3 - Position, Repair, Spring Center

1шт.

22

1329635C1

VALVE POPPET

Check Assy, Load, Incl 23, 24

1шт.

23

1329642C1

O-RING

Load Check

1шт.

24

1329647C1

RING

Backup

1шт.

26

1329631C1

COVER

Outlet

1шт.

27

1329643C1

O-RING KIT

Interface

1шт.

4 O - Rings Per Kit

1шт.

28

1329646C1

O-RING KIT

Spool

1шт.

2 O - Rings Per Kit

1шт.

29

1329632C1

KIT

Tie Rod

1шт.

Incl 3 Rods, 6 Washers, 6 Nuts

1шт.
