Запчасти Case IH 2255 (8-28) - CONTROL CABLE ADAPTER KIT (08) - HYDRAULICS

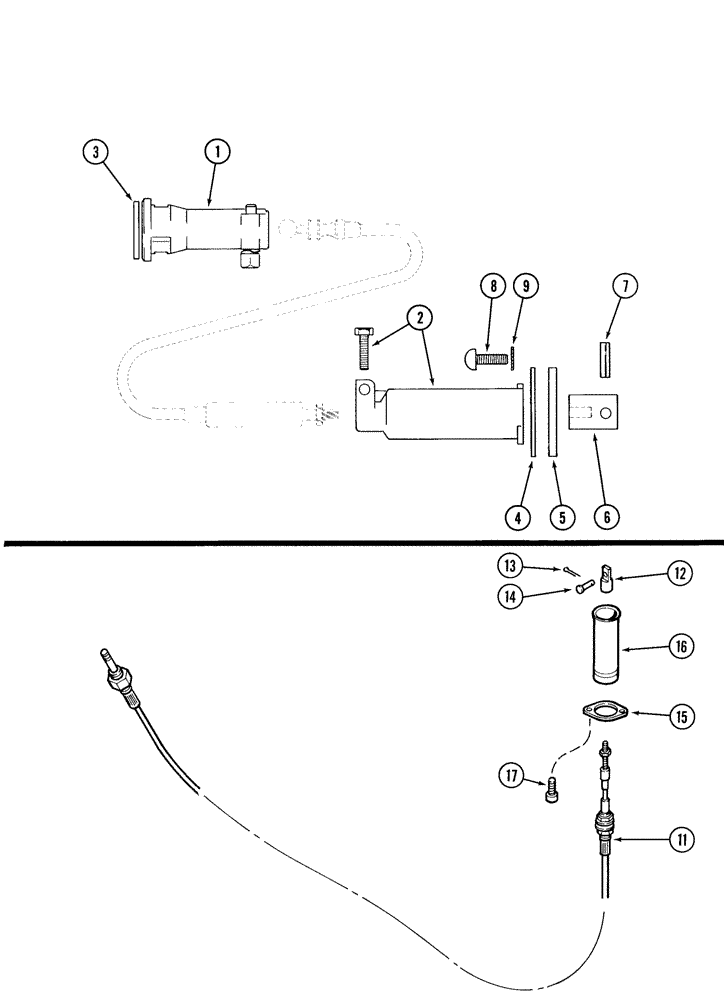

Схема запчастей Case IH 2255 - (8-28) - CONTROL CABLE ADAPTER KIT (08) - HYDRAULICS
16
1
4
13
11
7
8
2
5
3
17
14
6
9
15
12

Артикул

Название

Примечание

Количество

1329537C1

KIT

adapter, Includes Ref. 1 - 9

2шт.

Items 1 And 3 Do Not Come In The Kit

1шт.

1

1969201C1

SLEEVE

ASSEMBLY, cable to control assembly

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE ASSEMBLY, Serial Range: cable-valve

1шт.

3

1969200C1

SEAL

sleeve

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE retainer

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE spacer

1шт.

6

NSS

NOT SOLD SEPARAT

ADAPTER spool

1шт.

7

NSS

NOT SOLD SEPARAT

PIN spool adapter

1шт.

8

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

9

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

11

105104A1

CABLE

control, cab equipped tractors

2шт.

12

1980792C1

ADAPTER

ADAPTER cable, control, cab equipped tractors, Includes Ref. 13 and 14

2шт.

13

432-48

COTTER PIN,1/16" x 1/2"

Cable control, Cab equipped tractors

2шт.

14

427-3071

CLEVIS PIN,3/16" x .719"

clevis, 3/16 x 23/32 inch, hardened, cable control, cab equipped tractors

2шт.

15

1980783C1

FLANGE

cable support housing, control, cab equipped tractors

2шт.

16

1340478C1

HOUSING

cable control, cab equipped tractors, Includes Ref. 17

2шт.

17

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch, cable control, cab equipped tractors

2шт.

Выбрано товаров: 18
