(8-26) - 105042A1 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB

Запчасти Case IH 2255 (8-26) - 105042A1 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB (08) - HYDRAULICS

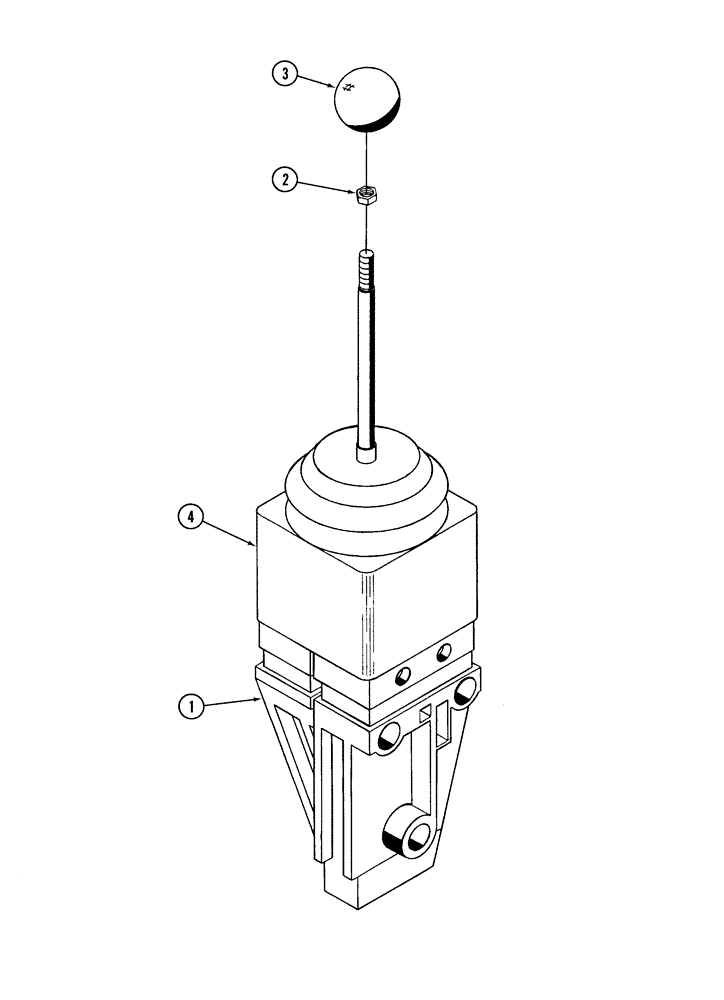

Схема запчастей Case IH 2255 - (8-26) - 105042A1 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB (08) - HYDRAULICS
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

105042A1

LEVER

CONTROL ASSEMBLY, hydraulic valve, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL hydraulic valve, (Order 105042A1)

1шт.

2

425-116

NUT,3/8" - 24, Gr 5

Hex

2шт.

3

105045A1

KNOB

mono control lever

1шт.

4

105046A1

BOOT

rubber

1шт.
