(8-24) - 1980795C1 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB

Запчасти Case IH 2255 (8-24) - 1980795C1 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB (08) - HYDRAULICS

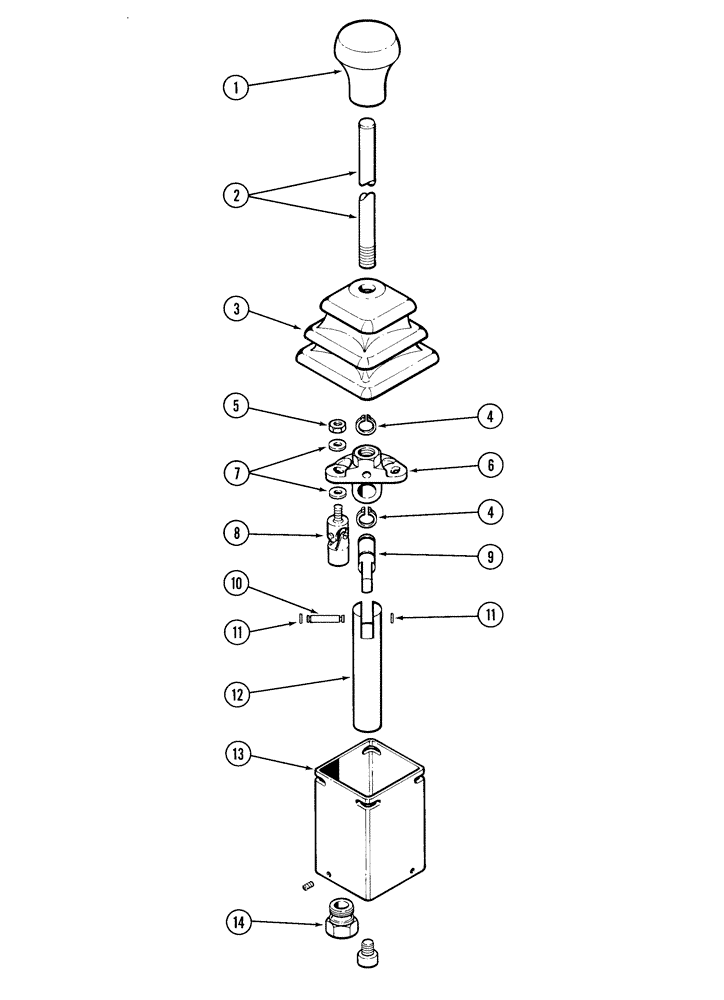

Схема запчастей Case IH 2255 - (8-24) - 1980795C1 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB (08) - HYDRAULICS
4
1
2
9
3
6
8
5
4
13
10
12
7
14
11
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1980795C1

CONTROL

LEVER ASSEMBLY, Includes Ref. 1 - 14

1шт.

1

53717DA

BUTTON

KNOB mono control lever

1шт.

2

1344806C1

LEVER

control valve

1шт.

3

1344804C1

BOOT

CONTROL ASSEMBLY

1шт.

4

1344814C1

RING

retaining

2шт.

5

825-1406

NUT,M6, Cl 8

2шт.

6

1344812C1

PLATE

mounting

1шт.

7

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

8

1344810C1

JOINT

ball

2шт.

9

1344808C1

AXLE

valve

1шт.

10

1344805C1

PIN

pivot

1шт.

11

1344813C1

RING

retaining

2шт.

12

1344807C1

SUPPORT

valve axle

1шт.

13

1344811C1

HOUSING

control device

1шт.

14

1344809C1

NUT

adjusting

2шт.
