Запчасти Case IH 2255 (8-22) - 1329536C91 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB (08) - HYDRAULICS

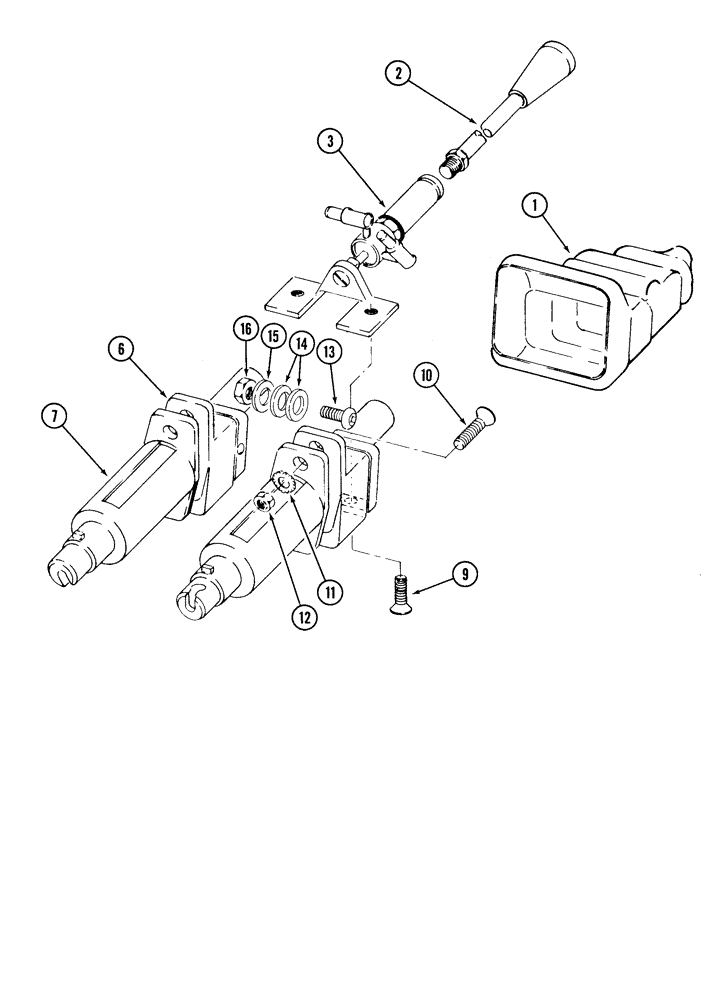

Схема запчастей Case IH 2255 - (8-22) - 1329536C91 CONTROL ASSEMBLY, HYDRAULIC VALVE, REMOTE, TRACTORS WITH CAB (08) - HYDRAULICS
14
10
6
1
2
16
13
3
11
9
15
7
12

Артикул

Название

Примечание

Количество

1329536C91

CONTROL

ASSEMBLY, remote, Includes Ref. 1 - 16

1шт.

1

1329662C1

BOOT

CONTROL ASSEMBLY

1шт.

2

1329648C1

LEVER ASSY.

control Includes, knob

1шт.

3

112023A1

BLOCK

pivot, Replaces 1329655C1

1шт.

6

1329656C1

HOUSING

control

2шт.

7

1329657C1

SLIDE

control

2шт.

9

30442R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

Cross recess

2шт.

10

443-13120

SCREW,Cross Flat Hd, 5/16"-18 x 1 1/4"

machine, flat Phillips, 5/16 NC x 1-1/4 inch

4шт.

11

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

4шт.

12

425-105

NUT,5/16"-18, G5

4шт.

13

461-33112

HEX SOC SCREW,5/16" - 18 x 3/4"

BOLT hex socket, 5/16 NC x 3/4 inch

1шт.

14

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

15

28588R1

WASHER

flat, 11/32 x 11/16 x 3/64 inch

1шт.

16

NLS

NO LONGER SERVICED

hex jam, 5/16 inch NC

1шт.

Выбрано товаров: 14
