(8-18) - 1329539C91 CONTROL ASSEMBLY, HYDRAULIC VALVE, DIRECT, TRACTORS WITHOUT CAB

Запчасти Case IH 2255 (8-18) - 1329539C91 CONTROL ASSEMBLY, HYDRAULIC VALVE, DIRECT, TRACTORS WITHOUT CAB (08) - HYDRAULICS

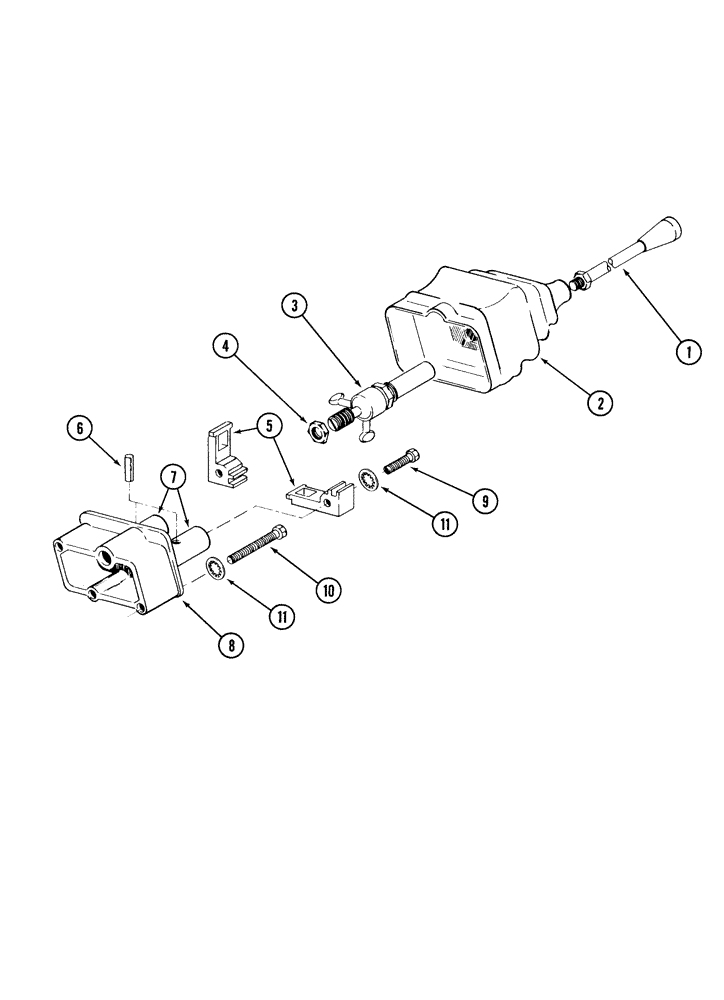

Схема запчастей Case IH 2255 - (8-18) - 1329539C91 CONTROL ASSEMBLY, HYDRAULIC VALVE, DIRECT, TRACTORS WITHOUT CAB (08) - HYDRAULICS
10
7
3
11
6
11
2
5
8
1
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1329539C91

VALVE

CONTROL ASSEMBLY, direct, hydraulic valve, (Order 1329539C1), Includes Ref. 1 - 11

1шт.

1

1329648C1

LEVER ASSY.

control, Includes knob

1шт.

2

1329649C1

BOOT

CONTROL ASSEMBLY

1шт.

3

1329650C1

KIT

BLOCK pivot

1шт.

4

425-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NF

1шт.

#4 is incorrect. pivot block needs 1/2" nut 425-158

1шт.

5

1329652C1

ADAPTER

pivot block

2шт.

6

138-130

LOCK PIN,1/4" x 3/4", Slotted

2шт.

7

1329651C1

CONNECTOR, ELEC

CONNECTOR spool

2шт.

8

1329653C1

BRACKET

CONTROL ASSEMBLY

1шт.

9

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

13шт.

11

492-11025

LOCK WASHER,1/4"

5шт.
