Запчасти Case IH 2255 (8-16) - CONTROL HYDRAULICS, TRACTORS WITH CAB (08) - HYDRAULICS

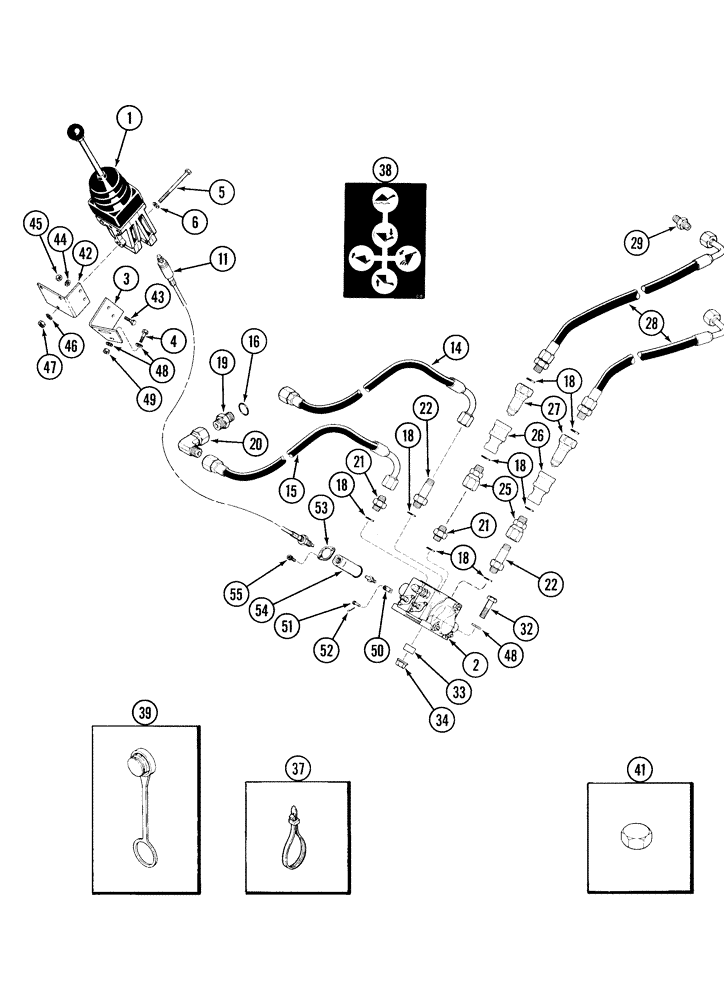

Схема запчастей Case IH 2255 - (8-16) - CONTROL HYDRAULICS, TRACTORS WITH CAB (08) - HYDRAULICS
5
51
55
18
6
28
39
22
38
19
18
22
44
2
50
46
53
48
18
1
41
21
15
45
4
47
43
21
48
20
42
37
49
25
29
18
26
16
11
34
33
14
54
18
27
32
3
52

Артикул

Название

Примечание

Количество

1

105042A1

LEVER

CONTROL ASSEMBLY, hydraulic valve, See Fig. 8-26

1шт.

The Ball stud part nbr is 222467A1

1шт.

2

123118A1

VALVE

ASEMBLY, hydraulic control, (Part number stamped on valve) See Fig. 8-38

1шт.

3

116472A1

BRACKET

CONTROL ASSEMBLY, (If used) Replaces 1344647C1

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

3шт.

5

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

hex, 1/4 NC x 5 inch

3шт.

6

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

3шт.

11

105104A1

CABLE

control

2шт.

14

1329584C2

HOSE ASSY.

72 inch, (1829 mm) long

1шт.

15

1329583C1

HOSE ASSY.

90 inch, (2286 mm) long

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

14шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

straight, 7/8-14 flare x 1-5/16-12 inch o-ring boss

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x o-ring boss, short

5шт.

22

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 7/8-14 inch flare x o-ring boss, long

3шт.

25

485313R1

FITTING

CONNECTOR swivel

4шт.

26

1272400C1

COUPLING

self sealing, female

4шт.

27

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF

4шт.

28

1329585C2

HOSE

60 inch, (1524 mm) long

4шт.

29

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

4шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

33

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

tubular, 3/8 x 1/2 inch

3шт.

34

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

3шт.

37

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

38

1334154C1

PRODUCT GRAPHIC

DECAL loader control pattern

1шт.

39

195608A1

CAP

PLUG coupler

1шт.

41

218-756

CAP,37 Degree, 7/8"-14

1шт.

42

128023A1

ANGLE

controller mounting, (If used)

1шт.

43

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

44

492-11031

LOCK WASHER,5/16"

2шт.

45

425-105

NUT,5/16"-18, G5

2шт.

46

492-11025

LOCK WASHER,1/4"

3шт.

47

425-104

NUT,1/4"-20, Cl 5

3шт.

48

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

10шт.

49

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

2шт.

50

1980792C1

ADAPTER

cable

2шт.

51

427-3071

CLEVIS PIN,3/16" x .719"

clevis, 3/16 x 23/32 inch, hardened

2шт.

52

432-48

COTTER PIN,1/16" x 1/2"

2шт.

53

1980783C1

FLANGE

cable support housing

2шт.

54

1340478C1

HOUSING

2шт.

55

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch

4шт.

Выбрано товаров: 43
