Запчасти Case IH 2255 (8-14) - CONTROL HYDRAULICS, TRACTORS WITH CAB (08) - HYDRAULICS

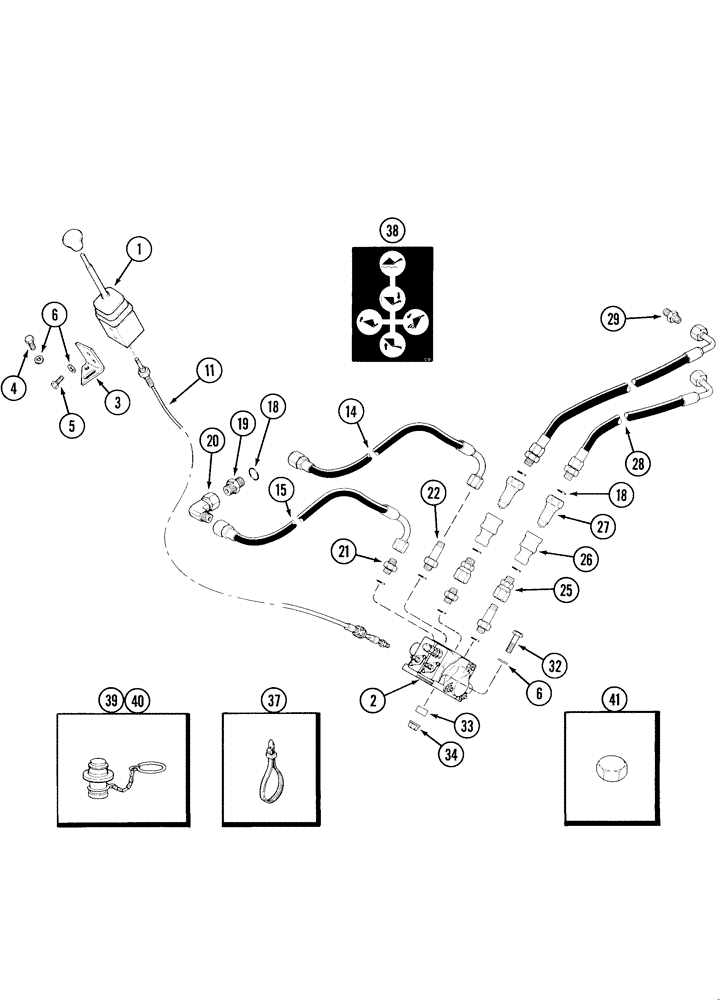

Схема запчастей Case IH 2255 - (8-14) - CONTROL HYDRAULICS, TRACTORS WITH CAB (08) - HYDRAULICS
18
22
37
4
6
28
19
27
5
14
34
40
39
38
6
15
32
26
41
18
29
33
25
11
2
3
20
21
1

Артикул

Название

Примечание

Количество

1

1980795C1

CONTROL

LEVER ASSEMBLY, See Fig. 8-24

1шт.

2

1343404C1

VALVE

ASSEMBLY, hydraulic control, (Part number stamped on valve) (Order 123118A1) See Fig. 8-32

1шт.

3

116472A1

BRACKET

CONTROL ASSEMBLY, Replaces 1344647C1

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

12шт.

11

1980794C1

CABLE

control, 78 inch

2шт.

14

1329584C2

HOSE ASSY.

72 inch, (1829 mm) long

1шт.

15

1329583C1

HOSE ASSY.

90 inch, (2286 mm) long

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

14шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

straight, 7/8-14 flare x 1-5/16-12 inch o-ring boss

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x o-ring boss, short

3шт.

22

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 7/8-14 inch flare x o-ring boss, long

3шт.

25

485313R1

FITTING

CONNECTOR swivel

4шт.

26

1272400C1

COUPLING

self sealing, female

4шт.

27

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF

4шт.

28

1329585C2

HOSE

60 inch, (1524 mm) long

4шт.

29

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

4шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

33

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

tubular, 3/8 x 1/2 inch

3шт.

34

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

3шт.

37

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

38

1334154C1

PRODUCT GRAPHIC

DECAL loader control pattern

1шт.

39

1954133C1

PLUG

coupling, dust, Includes Ref. 40

1шт.

40

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

1шт.

41

218-756

CAP,37 Degree, 7/8"-14

1шт.

Выбрано товаров: 28
