Запчасти Case IH 2255 (8-12) - CONTROL HYDRAULICS, TRACTORS WITH CAB (08) - HYDRAULICS

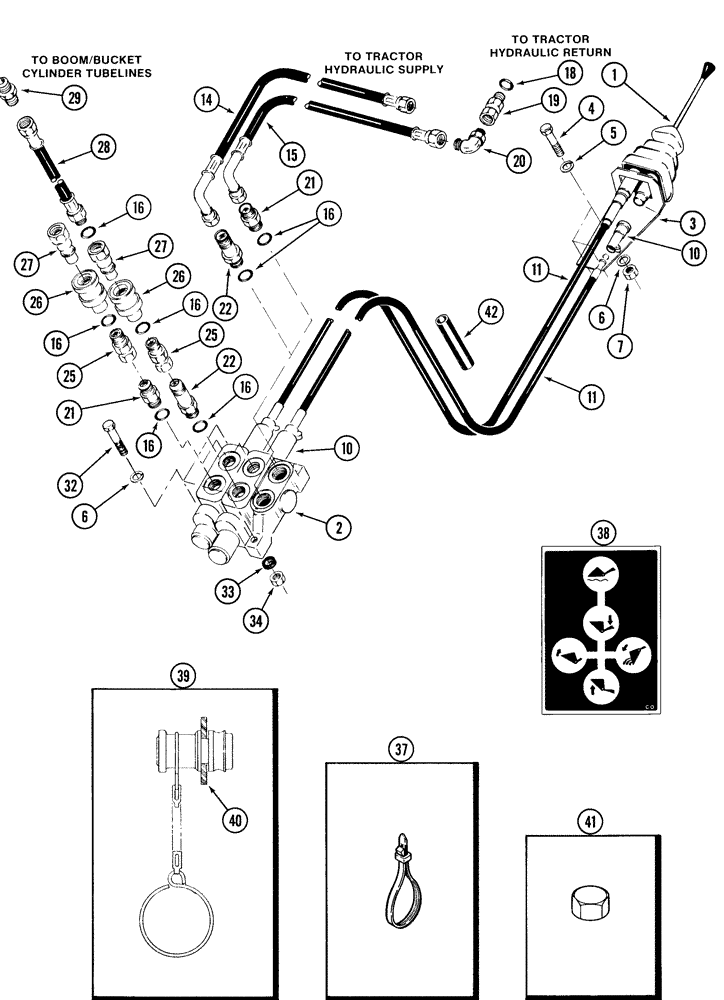

Схема запчастей Case IH 2255 - (8-12) - CONTROL HYDRAULICS, TRACTORS WITH CAB (08) - HYDRAULICS
4
16
3
34
1
28
21
38
21
16
11
16
2
33
27
26
41
29
26
19
7
27
15
16
16
37
40
6
6
18
39
22
25
20
5
16
42
14
10
32
10
25
11
22

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL ASSEMBLY, remote, hydraulic valve, See Fig. 8-22

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY, hydraulic control, See Fig. 8-30

1шт.

3

1329576C1

BRACKET

control assembly

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

6шт.

7

425-106

NUT,3/8"-16, Cl 5

3шт.

10

REF

INSTRUCTION

KIT adapter, control cable, See Fig. 8-28

2шт.

11

1329538C1

CABLE ASSY.

control hydraulic valve, 62.65 in. Long

2шт.

14

1329584C2

HOSE ASSY.

72 inch, (1829 mm) long

1шт.

15

1329583C1

HOSE ASSY.

90 inch, (2286 mm) long

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

14шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

straight, 7/8-14 flare x 1-5/16-12 inch o-ring boss

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x o-ring boss, short

3шт.

22

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 7/8-14 inch flare x o-ring boss, long

3шт.

25

485313R1

FITTING

CONNECTOR swivel

4шт.

26

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch

4шт.

27

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF

4шт.

28

1329585C2

HOSE

60 inch (1524 mm) long

4шт.

29

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

4шт.

32

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch

3шт.

33

117962

GROMMET,3/8" ID x 27/32" x .188"

SPACER rubber, 3/8 x 27/32 x 7/16 inch

3шт.

34

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

3шт.

37

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

38

1334154C1

PRODUCT GRAPHIC

DECAL loader control pattern

1шт.

39

1954133C1

PLUG

coupling, dust

1шт.

40

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

1шт.

41

218-756

CAP,37 Degree, 7/8"-14

1шт.

42

NSS

NOT SOLD SEPARAT

HOSE, 5/8 ID x 5 inch (Order bulk hose B90926 and, Serial Range: cut-length)

1шт.

Выбрано товаров: 31
