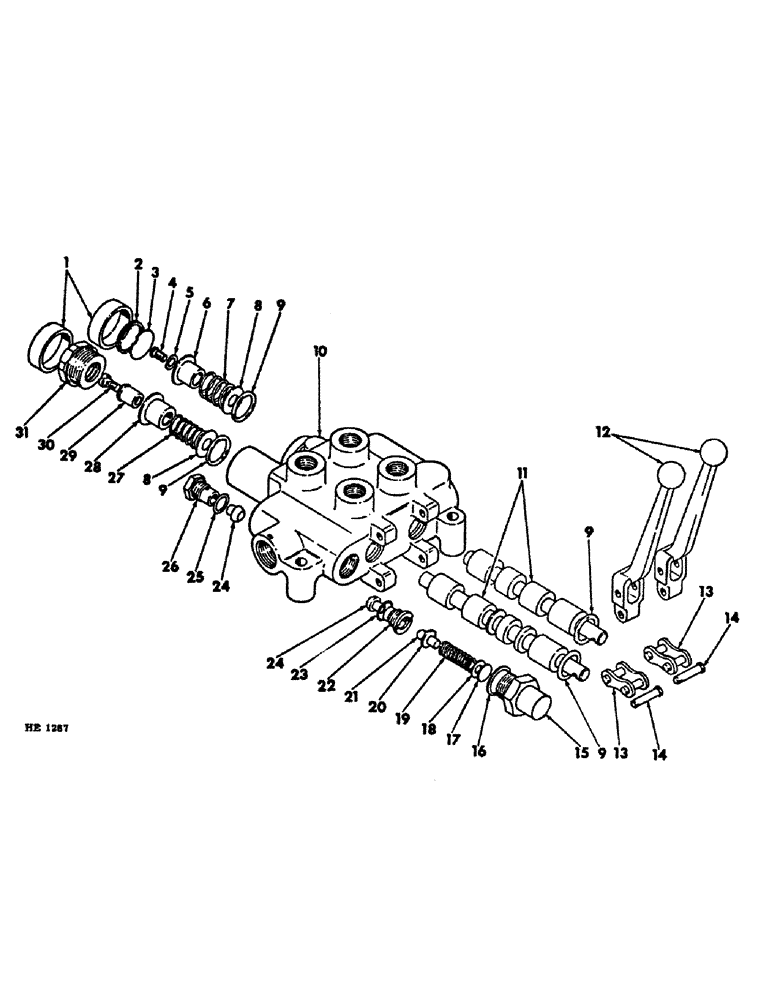

Запчасти Case IH 2250 (E-10) - HYDRAULIC CONTROL VALVE, EXTERNAL LOADER CONTROL, PRODUCT GRAPHICS Invalid section

851629C91

VALVE

ASSY, hyd control (consists of all parts listed)

1шт.

1

663034R1

CYLINDER END CAP

CAP, bonnet

2шт.

2

663025R1

OIL SEAL

RING, end cap retaining

1шт.

3

663023R1

CAP

end

1шт.

4

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 RH sltd mach

1шт.

5

174878

WASHER

1/4 int-T hvy lock

1шт.

6

663022R1

COLLAR

spring

1шт.

7

851630C1

SPRING

CENTERING

1шт.

8

149372R1

WASHER

stop

2шт.

9

663032R1

O-RING

SEAL, control valve spool

4шт.

10

HOUSING, control valve (for service order 1-851629C91 valve assy)

1шт.

11

SPOOL, valve 4 way float (for service order 1-851629C91 valve assy)

2шт.

12

380366R1

HANDLE

control

2шт.

13

635714R91

LINK

handle

2шт.

187357

PIN, 1/16 x 1-1/2 cotter

2шт.

14

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, handle

2шт.

19454R1

PIN

5/64 x 7/16 cotter

2шт.

15

380363R1

FITTING

BODY, relief valve

1шт.

16

663029R1

GASKET

relief valve body

1шт.

17

380365R1

SHIM

relief spring

1шт.

18

635788R1

WASHER

SPACER, relief spring

1шт.

19

478481R1

SPRING

relief

1шт.

20

387135R1

GUIDE

relief spring

1шт.

21

16014R1

BALL

7/16 dia steel

1шт.

22

380362R1

SEAT

relief valve

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

666719R1

VALVE POPPET

BALL, 5/8 dia relief check

2шт.

25

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

26

666722R1

PLUG

check ball

1шт.

27

851456C1

SPRING

centering

1шт.

28

635966R1

COLLAR

spring

1шт.

29

851457C1

PLUNGER

detent

1шт.

30

893081C1

SCREW, detent

1шт.

31

894005C1

VALVE BLOCK

DETENT, assy

1шт.

547494R91

DECAL

PACKAGE, product graphic I.H.

2шт.

547495R91

DECAL

PACKAGE, product graphic International

2шт.

547494R91

DECAL

PACKAGE, product graphic model no.

1шт.

851751C1

DECAL

PRODUCT GRAPHIC, mount-o-matic

1шт.

70373C1

PRODUCT GRAPHIC

caution

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, warning - machine operation

1шт.
