Запчасти Case IH 2250 (E-09) - MANURE BUCKET Invalid section

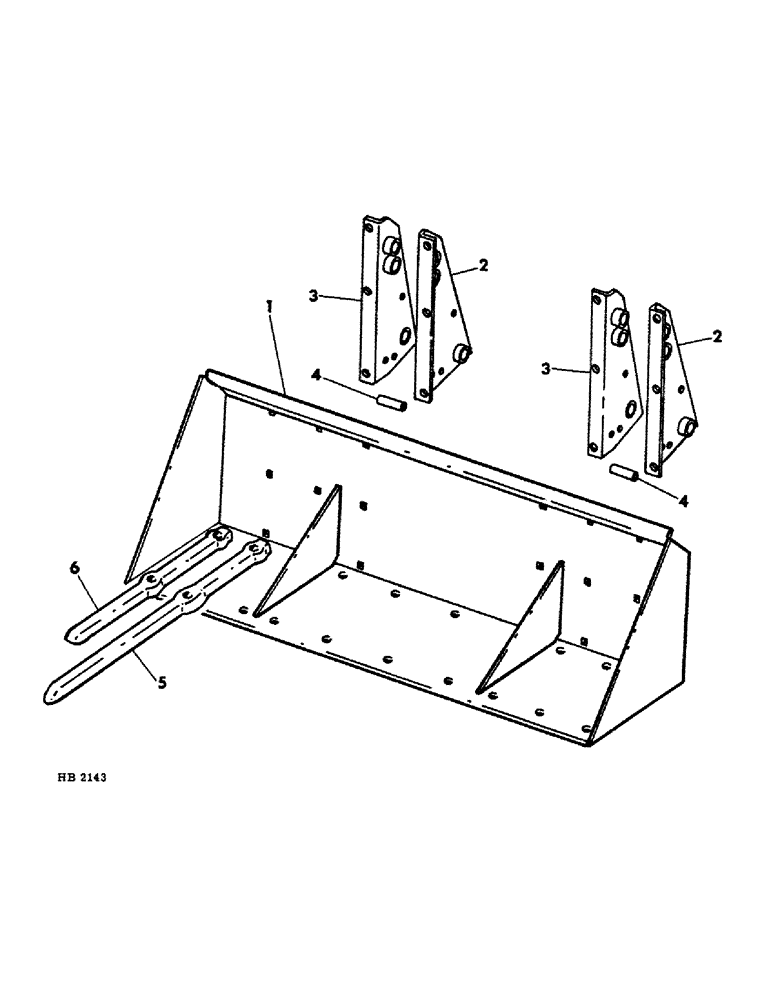

Схема запчастей Case IH 2250 - (E-09) - MANURE BUCKET Invalid section

Артикул

Название

Примечание

Количество

1

BUCKET, 60" manure (for service order on machine order form)

1шт.

1

BUCKET, 72" manure (for service order on machine order form)

1шт.

2

851925C1

SUPPORT

ASSY, bucket hinge LH outer and RH inner

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

3

851926C1

SUPPORT

ASSY, bucket hinge LH inner and RH outer

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

4

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

cylinder stop

2шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2-13 x 6 hex-HD

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

851425C1

TINE

FINGER, 60" bucket inner

6шт.

5

851817C1

TINE

FINGER, 72" bucket inner

8шт.

19064R1

BOLT,1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 no. 3 plow (2 per finger)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 per bolt) 1/2"-13, G5

1шт.

6

851426C1

TINE

FINGER, 60" bucket outer

2шт.

6

851818C1

TINE

FINGER, 72" bucket outer

2шт.

19064R1

BOLT,1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 no. 3 plow

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 19
